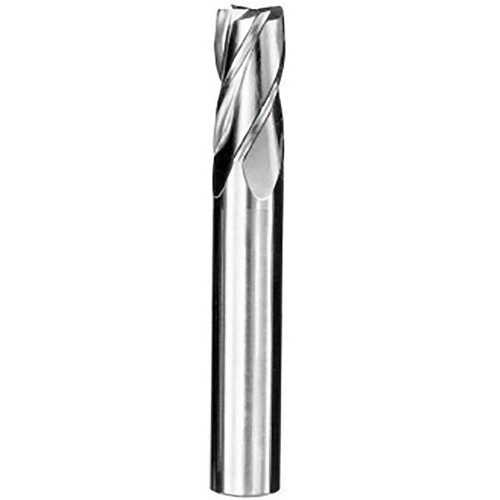

11/64 End Mill 4FL SQ - SER 01S 11/64x3/16x5/8x2
SQ End Mill; 11/64″ Dia. × 5/8″ LOC × 3/16″ Shank Dia. × 2″ OAL ; 4 FL ; Carbide ; Uncoated
| Cutting Diameter (DC) | 11/64″ | Shank Type | Round |
| Connection Diameter Machine Side (DCONMS) | 3/16″ | End Shape | Square |
| Depth of Cut Maximum (APMX) | 5/8″ | Usable Length (LU) | 1-3/8″ |
| Overall Length (OAL) | 2″ | Corner Radius (RE) | 0″ |
| Cutting Edge Material | Carbide | Flute Type | Spiral |
| Coating | Uncoated | Coolant Supply Property (CSP) | External |
| Flute Count (NOF) | 4 | Decimal Equivalent | 0.171875″ |
| Flute Helix Angle (FHA) | 30 Degrees | Measurement Type | Inch |
Product Features
| Country of Origin | USA |
Shipping Info
Package Weight
0.028
