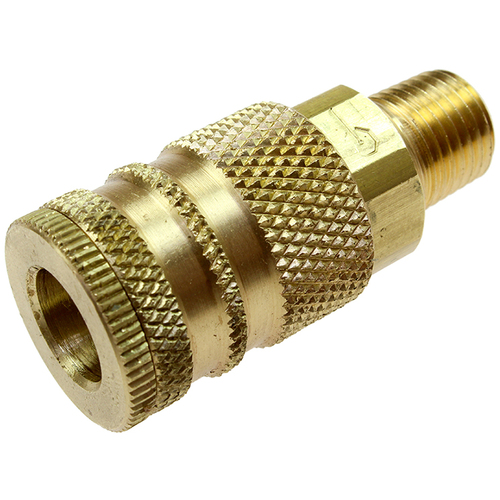

QD 1/4 MPT-1/4 COUPLER
| Type | Interchange Coupler | Model No | 152-P200 |
| Thread Size | 1/4″ | Series | 15 Series |
| Thread Type | MNPT | Body Diameter | 1/4″ |
Product Features
| Remarks | •This series of couplers and connectors is designed to interchange with the industrial interchange series of other manufacturers •A drag guard protects the sliding sleeve from being snagged or uncoupled •Six stainless steel locking balls provide greater surface contact with the connector for a more balanced & secure connection •Type 15 Series Coilhose Couplers will accept all 15 Series Coilhose Connectors •Type 58 and 12 Series Coilhose Couplers are automatic for applications where a simple "one-handed" push-to-connect operation is desirable •All 1/4 body couplers are brass, all 3/8 & 1/2 body couplers are zinc chromate plated steel | Country of Origin | USA |
Shipping Info
Package Length
2.05000
Package Width
.89000
Package Height
.89000
Package Weight
0.2
