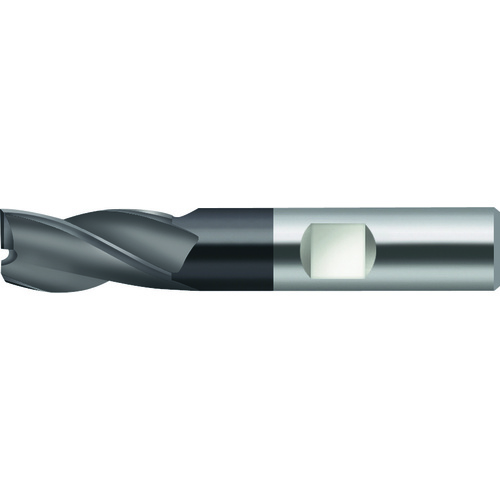

MC716-11.7W3A 11.7MM 3FL 30 DEG
SQ End Mill; 11.7 mm Dia. × 12 mm LOC × 12 mm Shank Dia. × 73 mm OAL ; 0.25 mm RE ; 3 FL ; 12 mm LBS ; Carbide ; TiAlN ; Series MC716
Additional Tariff Surcharge of 8 %
| Cutting Diameter (DC) | 11.7 mm | Usable Length (LU) | 12 mm |
| Connection Diameter Machine Side (DCONMS) | 12 mm | Applicable Material | | Steel | Stainless Steel | Cast Iron | Super-Alloys / Titanium | |
| Depth of Cut Maximum (APMX) | 12 mm | Grade | WJ30TF |
| Overall Length (OAL) | 73 mm | Tool Type | Square Endmill |
| Cutting Edge Material | Carbide | Coolant Supply Property (CSP) | External |
| Coating | TiAlN | Shank Standard | DIN 6535 HB |
| Flute Count (NOF) | 3 | Body Material | Carbide |
| Flute Helix Angle (FHA) | 30 Degrees | Measurement Type | Metric |
| Shank Type | Weldon | Series/List # | MC716 |
| End Shape | Square | Corner Radius (RE) / Chamfer Width (CHW) | 0.25 mm |
Product Features
| Country of Origin | China |
