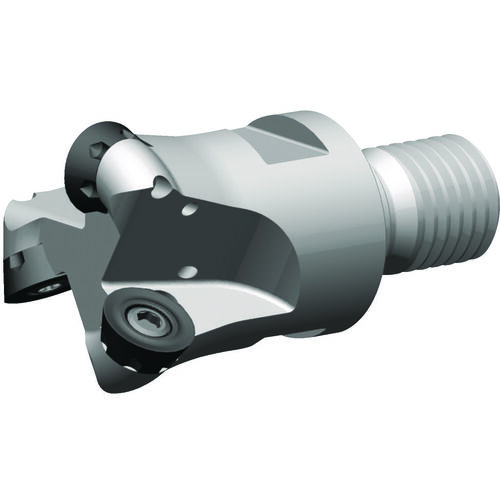

M100D100Z02M12RD12 W MILLING
Indexable End Mill; 1″ Dia. × 0.24″ LOC × 0.827″ Shank Dia. × 2.366″ OAL × 1-1/2″ LU ; Threaded Shank
| Cutting Diameter (DC/DCX) | 1″ | Tool Type | Non-Center Cuttingsingle-End |
| Cutting Diameter (DC) | 1″ | Connection Thread Nominal Size Machine Side (THSZMS) | M12 |
| Cutting Item Count (CICT) | 2 | Usable Length (LU) | 1-1/2″ |
| Depth of Cut Maximum (APMX) | 0.24″ | Coolant Supply Property (CSP) | Coolant Thru |
| Overall Length (OAL) | 2.366″ | Diameter | 0.528″ |
| Shank Type | Threaded | Cutting Direction (HAND) | Right Hand |
| Connection Diameter Machine Side (DCONMS) | 0.827″ |
Product Features
| Country of Origin | Germany |
Shipping Info
Package Weight
0.254
