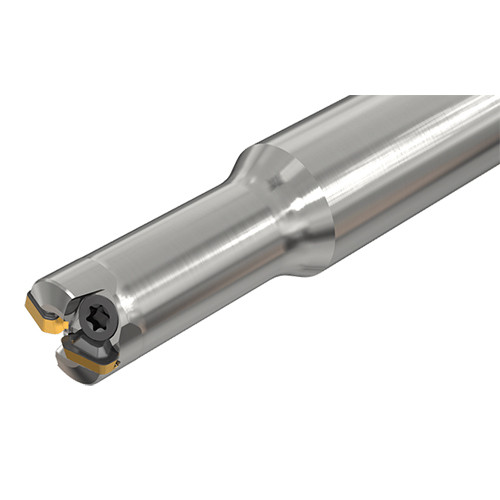

FFT3 EFM D08-2-080-C12-02

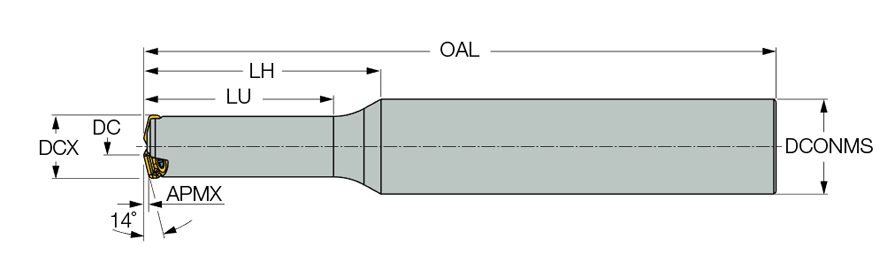

Indexable End Mill; 0.315″ Dia. × 0.0236″ LOC × 0.472″ Shank Dia. × 3.15″ OAL × 1.0236″ LU ; Round Shank ; 14 Degrees
| Cutting Diameter (DC/DCX) | 0.315″ | Head Length (LH) | 1.181″ |
| Cutting Diameter (DC) | 0.087″ | Functional Length (LF) | 3.15″ |
| Cutting Item Count (CICT) | 2 | Usable Length (LU) | 1.0236″ |
| Depth of Cut Maximum (APMX) | 0.0236″ | Torque (TQ) | 4.43 lbfxin |
| Overall Length (OAL) | 3.15″ | Coolant Supply Property (CSP) | Coolant Thru |
| Shank Type | Round | Tool Cutting Edge Angle (KAPR) | 14 Degrees |
| Ramping Angle Maximum (RMPX) | 10.8 Degrees | Cutting Direction (HAND) | Right Hand |
| Application | | Facing | Fast Feed Milling | Helical Interpolation | Plunging & Recessing | Profiling | Rampdown | Side Plunging | | Measurement Type | Inch |
| Connection Diameter Machine Side (DCONMS) | 0.472″ | Body Material | Steel |
| Master Insert Identification (MIID) | FFT3 TXMT 0201205T | Connection Code Machine Side (CCMS) | Cylindrical |
| Weight of Item (WT) | 0.11 Lbs | Cutting Diameter Maximum (DCX) | 0.315″ |
Product Features
| Family Description | Small diameter endmills carrying single sided triangular inserts for fast feed milling | Country of Origin | Israel |
| Remarks | Radius for programming .04 inch To generate a straight surface without cusps, the width of cut must not exceed DC |
Shipping Info
Package Weight
0.22
