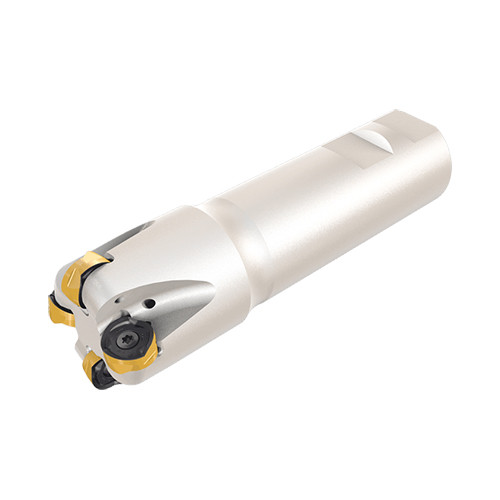

H606 ER D1.5-04-W1.25-.50
Indexable End Mill; 1-1/2″ Dia. × 0.236″ LOC × 1-1/4″ Shank Dia. × 5″ OAL ; 4 FL

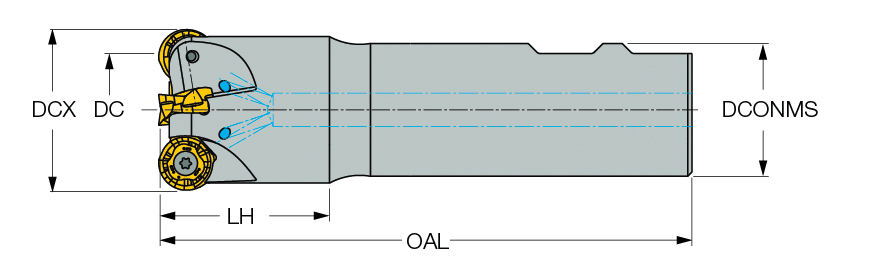

| Cutting Diameter (DC/DCX) | 1-1/2″ | Head Length (LH) | 1.6″ |
| Cutting Diameter (DC) | 1.028″ | Functional Length (LF) | 3.859″ |
| Cutting Item Count (CICT) | 4 | Flute Count (NOF) | 4 |
| Depth of Cut Maximum (APMX) | 0.236″ | Coolant Supply Property (CSP) | Coolant Thru |
| Overall Length (OAL) | 5″ | Cutting Direction (HAND) | Right Hand |
| Application | | Facing | Helical Interpolation | Profiling | Rampdown | | Measurement Type | Inch |
| Connection Diameter Machine Side (DCONMS) | 1-1/4″ | Body Material | Steel |
| Master Insert Identification (MIID) | H606 RXCU 1206-AXMP | Connection Code Machine Side (CCMS) | Weldon |
| Weight of Item (WT) | 1.57 lbs | Cutting Diameter Maximum (DCX) | 1-1/2″ |
Product Features
| Family Description | Endmills carrying double-sided inserts with six .250″ radius cutting edges. | Country of Origin | Israel |
Shipping Info
Package Weight
1.565
