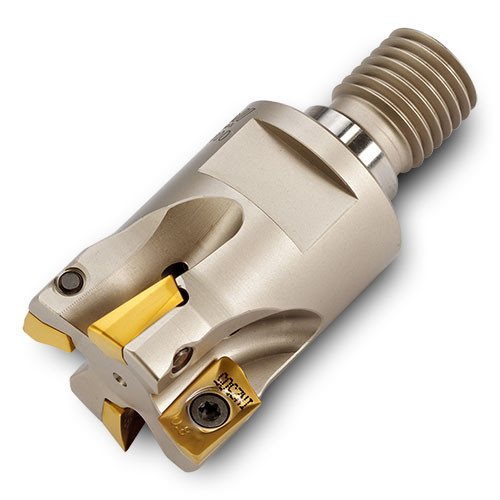

12J1R-12017X8R01
Indexable End Mill; 1-1/4″ Dia. × 0.47″ LOC ; 90 Degrees
| Cutting Diameter (DC/DCX) | 1-1/4″ | Coolant Supply Property (CSP) | Coolant Thru |
| Cutting Diameter (DC) | 1-1/4″ | Tool Cutting Edge Angle (KAPR) | 90 Degrees |
| Cutting Item Count (CICT) | 4 | Cutting Direction (HAND) | Right Hand |
| Depth of Cut Maximum (APMX) | 0.47″ | Measurement Type | Inch |
| Ramping Angle Maximum (RMPX) | 3.1 Degrees | Body Material | Steel |
| Application | | Facing | Helical Interpolation | Rampdown | Shouldering | Slotting | | Hub Diameter (DHUB) | 1.13″ |
| Weight of Item (WT) | 0.73 Kg | Connection Code Machine Side (CCMS) | Cylindrical |
| Functional Length (LF) | 1-3/4″ |
Product Features
| Family Description | Insert corners: .015″, .031″, .062″, .078″, .093″, .125″, .156 R | Country of Origin | Usa |
Shipping Info
Package Weight
0.001
