12J1B-1003780R02

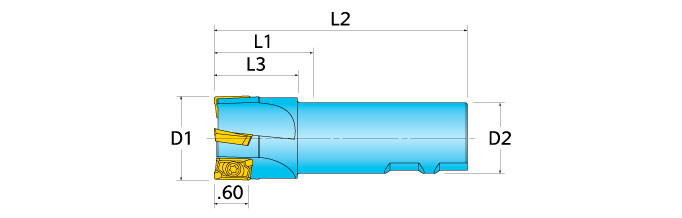

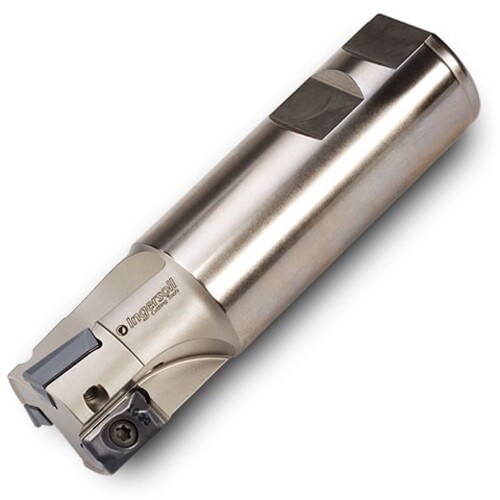

Indexable End Mill; 1″ Dia. × 13 mm LOC × 1″ Shank Dia. × 5.99″ OAL × 3.74″ LU ; 4 FL ; Round Shank ; 90 Degrees
| Cutting Diameter (DC/DCX) | 1″ | Head Length (LH) | 3.74″ |
| Cutting Diameter (DC) | 1″ | Tool Type | 90° indexable endmills |
| Cutting Item Count (CICT) | 2 | Usable Length (LU) | 3.74″ |
| Depth of Cut Maximum (APMX) | 13 mm | Flute Count (NOF) | 4 |
| Overall Length (OAL) | 5.99″ | Coolant Supply Property (CSP) | Coolant Thru |
| Shank Type | Round | Tool Cutting Edge Angle (KAPR) | 90 Degrees |
| Ramping Angle Maximum (RMPX) | 2.1 Degrees | Cutting Direction (HAND) | Right Hand |
| Application | | Helical Interpolation | Rampdown | Shouldering | Slotting | | Measurement Type | Inch |
| Connection Diameter Machine Side (DCONMS) | 1″ | Body Material | Steel |
| Master Insert Identification (MIID) | .062 - .125 | Connection Code Machine Side (CCMS) | Cylindrical |
| Weight of Item (WT) | 0.73 Kg |
Product Features
| Family Description | Cutting Edge Length: .60″ Insert Corner: .015″ .031″ .062″ .093″ & .125″ R | Country of Origin | USA |
