EPYP12M025C25.0R03

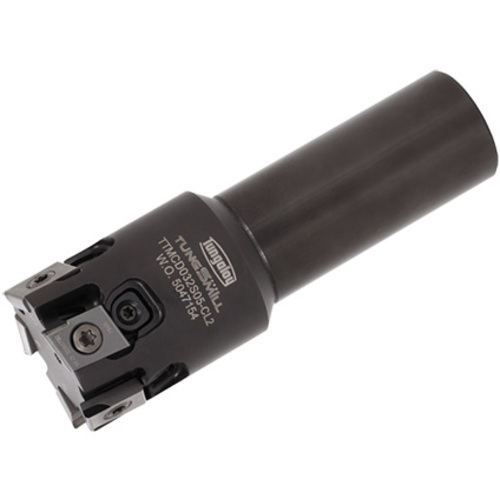

Indexable End Mill; 25 mm Dia. × 4 mm LOC × 25 mm Shank Dia. × 100 mm OAL ; 4 FL ; 90 Degrees

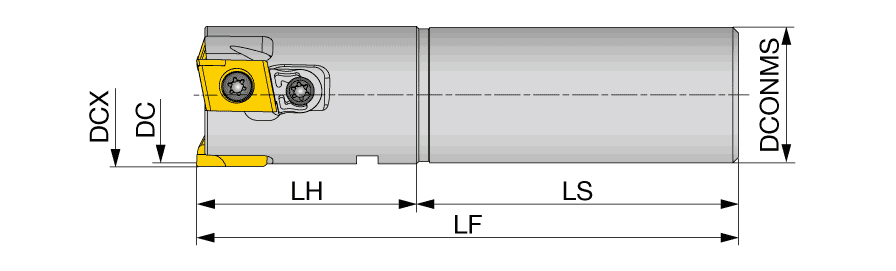

| Cutting Diameter (DC/DCX) | 25 mm | Functional Length (LF) | 100 mm |
| Cutting Diameter (DC) | 25 mm | Flute Count (NOF) | 4 |
| Cutting Item Count (CICT) | 3 | Coolant Supply Property (CSP) | Coolant Thru |
| Depth of Cut Maximum (APMX) | 4 mm | Tool Cutting Edge Angle (KAPR) | 90 Degrees |
| Overall Length (OAL) | 100 mm | Cutting Direction (HAND) | Right Hand |
| Ramping Angle Maximum (RMPX) | 2.1 Degrees | Measurement Type | Metric |
| Application | | Face Milling | | Body Material | Steel |
| Connection Diameter Machine Side (DCONMS) | 25 mm | Shank Length (LS) | 50 mm |
| Master Insert Identification (MIID) | YPEB12X3-1P02R-D | Connection Code Machine Side (CCMS) | Cylindrical |
| Weight of Item (WT) | 0.4 Kg | Cutting Diameter Maximum (DCX) | 26.4 mm |
| Head Length (LH) | 50 mm |
Product Features
| Family Description | High speed milling endmill with PCD insert for non ferrous materials | Country of Origin | Italy |
| Remarks | DCX: Outside diameter DC: diameter with 01 type insert |
