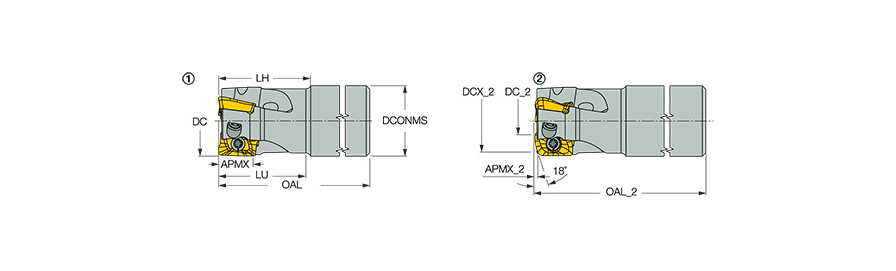

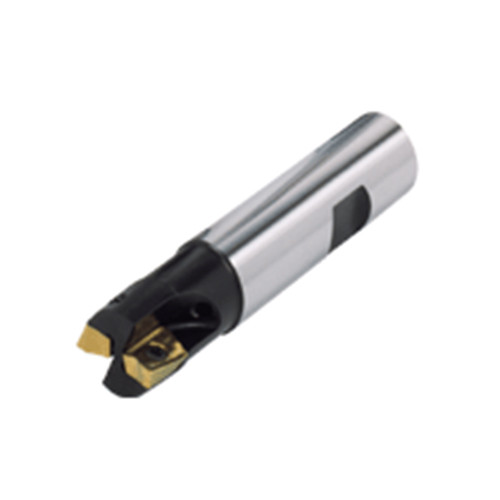

FHM90 E90A-D.62-2-W.62
| Cutting Diameter (DC/DCX) | 5/8″ | Head Length (LH) | 1″ |
| Cutting Diameter (DC) | 5/8″ | Functional Length (LF) | 2.297″ |
| Cutting Item Count (CICT) | 2 | Tool Type | 90° indexable endmills |
| Depth of Cut Maximum (APMX) | 0.394″ | Usable Length (LU) | 0.94″ |
| Overall Length (OAL) | 3-1/4″ | Flute Count (NOF) | 2 |
| Shank Type | Weldon | Coolant Supply Property (CSP) | Coolant Thru |
| Ramping Angle Maximum (RMPX) | 15 Degrees | Tool Cutting Edge Angle (KAPR) | 90 Degrees |
| Application | | Counter Boring | Facing | Helical Interpolation | Rampdown | Shouldering | Slotting | | Cutting Direction (HAND) | Right Hand |
| Connection Diameter Machine Side (DCONMS) | 5/8″ | Measurement Type | Inch |
| Master Insert Identification (MIID) | APKT 1003PDR-HM | Body Material | Steel |
| Weight of Item (WT) | 0.24 Lbs | Connection Code Machine Side (CCMS) | Weldon |
Product Features
| Family Description | Endmills for FPKT 1003... inserts. | Country of Origin | Israel |
