1TJ1D016023X5R00

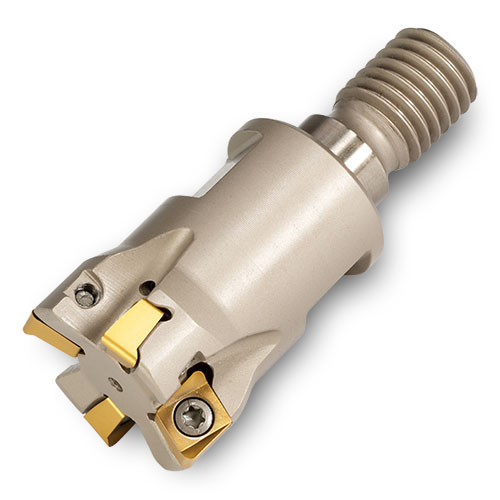

Indexable End Mill; 0.63″ Dia. × 0.236″ LOC ; 90 Degrees
| Cutting Diameter (DC/DCX) | 0.63″ | Coolant Supply Property (CSP) | Coolant Thru |
| Cutting Diameter (DC) | 0.63″ | Tool Cutting Edge Angle (KAPR) | 90 Degrees |
| Cutting Item Count (CICT) | 2 | Cutting Direction (HAND) | Right Hand |
| Depth of Cut Maximum (APMX) | 0.236″ | Measurement Type | Inch |
| Application | | Facing | Helical Interpolation | Rampdown | Shouldering | Slotting | | Body Material | Steel |
| Weight of Item (WT) | 0.73 Kg | Hub Diameter (DHUB) | 0.512″ |
| Functional Length (LF) | 0.905″ | Connection Code Machine Side (CCMS) | Cylindrical |
Product Features
| Family Description | 32-63 Ra finishes when using insert with integrated wiper (WEP). 63-125 Ra finishes when using insert with no integrated wiper Backdraft insert option to reduce vibration for long reach applications | Country of Origin | Germany |
Shipping Info
Package Weight
0.051
