M170D032Z02M16RD16 MILLING

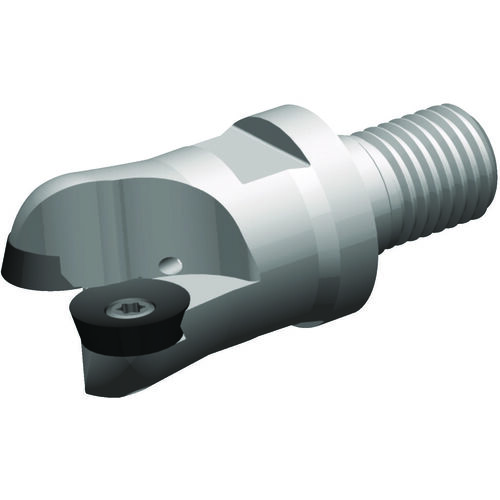

Indexable End Mill; 32 mm Dia. × 8 mm LOC × 29 mm Shank Dia. × 67.5 mm OAL × 43 mm LU ; Threaded Shank
Additional Tariff Surcharge of 8.5 %
| Cutting Diameter (DC/DCX) | 32 mm | Tool Type | Center Cut|Single-End |
| Cutting Diameter (DC) | 32 mm | Connection Thread Nominal Size Machine Side (THSZMS) | M16 |
| Cutting Item Count (CICT) | 2 | Usable Length (LU) | 43 mm |
| Depth of Cut Maximum (APMX) | 8 mm | Coolant Supply Property (CSP) | Coolant Thru |
| Overall Length (OAL) | 67.5 mm | Diameter | 16 mm |
| Shank Type | Threaded | Cutting Direction (HAND) | Right Hand |
| Connection Diameter Machine Side (DCONMS) | 29 mm |
Product Features
| Country of Origin | Germany |
Shipping Info
Package Weight
.4189
