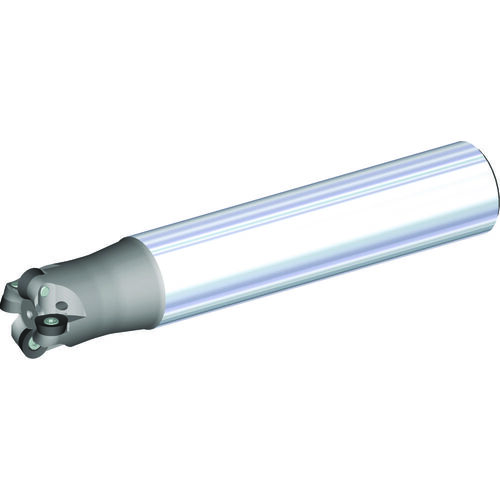

M170D025Z02A25RD10L220 MILLING
Indexable End Mill; 25 mm Dia. × 5 mm LOC × 25 mm Shank Dia. × 220 mm OAL × 100 mm LU ; Round Shank
Additional Tariff Surcharge of 8.5 %
| Cutting Diameter (DC/DCX) | 25 mm | Connection Diameter Machine Side (DCONMS) | 25 mm |
| Cutting Diameter (DC) | 25 mm | Tool Type | Non-Center Cuttingsingle-End |
| Cutting Item Count (CICT) | 2 | Usable Length (LU) | 100 mm |
| Depth of Cut Maximum (APMX) | 5 mm | Coolant Supply Property (CSP) | Coolant Thru |
| Overall Length (OAL) | 220 mm | Diameter | 15 mm |
| Shank Type | Round | Cutting Direction (HAND) | Right Hand |
Product Features
| Country of Origin | Germany |
Shipping Info
Package Weight
1.6384
