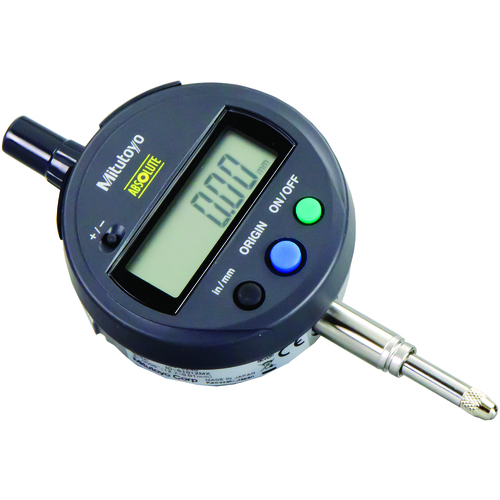

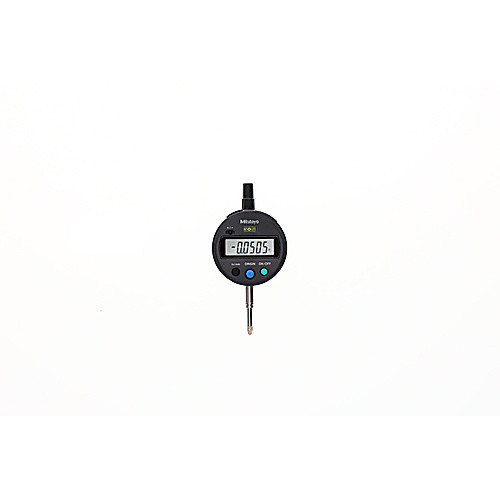

Model 543-782 Digimatic Indicator-ID-S1012MX
| Type | Digimatic Indicator | Model No | 543-782 |
| Indicator Style | IDSX | Resolution | 0.0005″ / 0.010 mm |
| Total Range | 0 - .5″ / 0 - 12.7mm | Accuracy | 0.00010″ / 0.002 mm |
| Series | 543 | Description | With Absolute Encoder |
| Features | With Absolute Encoder |
Product Features
| Remarks | •Absolute Encoder Technology maintaineds all settings for the life of the battery •Conforms generally to Group 2 dial indicator dimensions •Measuring range: 0-5″/0-12.7mm •Functions: origin, on/off, in/mm +/? •Data output: SPC digimatic output •Stem diameter: .375″ -.0012″ •Contact point .16″ (dia.) steel ball (4-48 UNF) •For SPC output order connecting cable MT80905338 (1m) or MT80905409 (2m) •"B" Indicates flat back. | Country of Origin | Japan |
Shipping Info
Additional Fees and Notes
0
Package Weight
0.602
