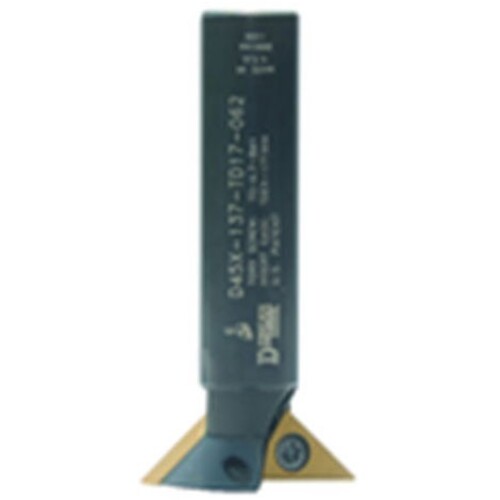

1-3/8″ Dia × 5/8″ SH-45° Dovetail Cutter
Indexable End Mill; 1-3/8″ Dia. × 0.32″ LOC × 5/8″ Shank Dia. × 2.94″ OAL
| Cutting Diameter (DC/DCX) | 1-3/8″ | Tool Type | Indexable Cutters/Tips |
| Cutting Diameter (DC) | 1-3/8″ | Width (W) | 3/8″ |
| Cutting Item Count (CICT) | 2 | Style | Dovetail |
| Depth of Cut Maximum (APMX) | 0.32″ | Angle | 45 Degrees |
| Overall Length (OAL) | 2.94″ | Model Number | D45X-137-TD17-062 |
| Connection Diameter Machine Side (DCONMS) | 5/8″ | Inscribed Circle Diameter (IC) | 0.67″ |
Product Features
| Remarks | •Cutting Rake - 11° for 11° Positive TDEX Inserts | Country of Origin | USA |
Shipping Info
Package Weight
0.3
