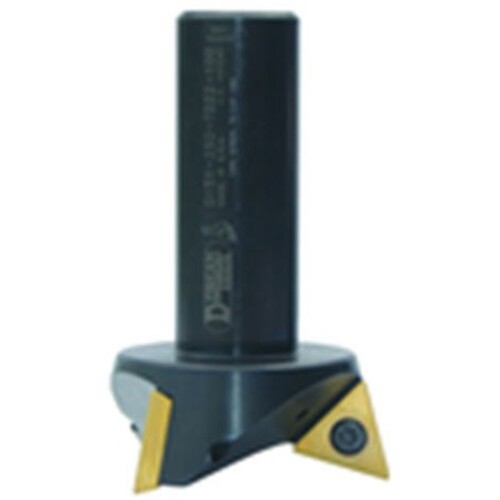

2-1/2″ Dia × 1″ SH-15° Dovetail Cutter
Indexable End Mill; 2-1/2″ Dia. × 1″ LOC × 1″ Shank Dia. × 3-3/4″ OAL
| Cutting Diameter (DC/DCX) | 2-1/2″ | Tool Type | Indexable Cutters/Tips |
| Cutting Diameter (DC) | 2-1/2″ | Width (W) | 3/4″ |
| Cutting Item Count (CICT) | 3 | Style | Dovetail |
| Depth of Cut Maximum (APMX) | 1″ | Angle | 15 Degrees |
| Overall Length (OAL) | 3-3/4″ | Inscribed Circle Diameter (IC) | 1/2″ |
| Connection Diameter Machine Side (DCONMS) | 1″ |
Product Features
| Remarks | •Cutting Rake - 15° for 15° Positive TDEX Inserts | Country of Origin | USA |
Shipping Info
Package Weight
0.5
