HM90 E90A-D.62-2-MMT10
Indexable End Mill; 0.62″ Dia. × 0.39″ LOC × 0.6″ Shank Dia. × 1.33″ OAL ; 2 FL ; 90 Degrees
| Cutting Diameter (DC/DCX) | 0.62″ | Tool Type | 90° indexable endmills |
| Cutting Diameter (DC) | 0.62″ | Connection Thread Nominal Size Machine Side (THSZMS) | T10 |
| Cutting Item Count (CICT) | 2 | Drive Size (DRVS) | 0.512″ |
| Depth of Cut Maximum (APMX) | 0.39″ | Flute Count (NOF) | 2 |
| Overall Length (OAL) | 1.33″ | Coolant Supply Property (CSP) | External |
| Ramping Angle Maximum (RMPX) | 3.2 Degrees | Tool Cutting Edge Angle (KAPR) | 90 Degrees |
| Application | | Counter Boring | Facing | Helical Interpolation | Rampdown | Shouldering | Slotting | | Cutting Direction (HAND) | Right Hand |
| Connection Diameter Machine Side (DCONMS) | 0.6″ | Measurement Type | Inch |
| Master Insert Identification (MIID) | APKT 1003PDR-HM | Body Material | Steel |
| Weight of Item (WT) | 0.06 Lbs | Connection Code Machine Side (CCMS) | MultiMaster |
| Functional Length (LF) | 0.87″ |
Product Features
| Family Description | HELI2000 90° endmills with a MULTI-MASTER threaded adaptation carrying HM90 AP.. 1003... inserts. | Country of Origin | Israel |

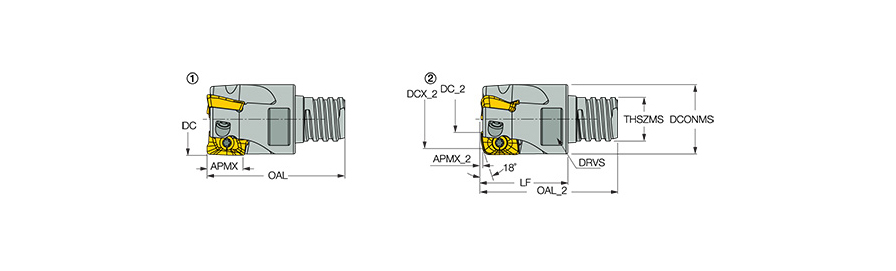

| Remarks | 1- with standard square insert 2- with FF (fast feed) insert Do not apply lubricant to the MULTI-MASTER threaded connection For tightening torque click on More Info |
Shipping Info
Package Weight
0.163
