E90SO D16-5-C16-04-C

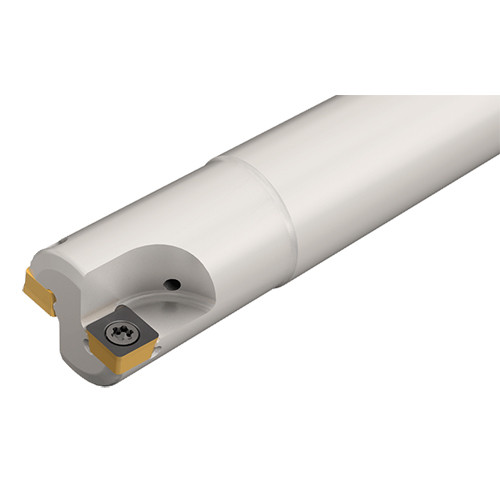

Indexable End Mill; 16 mm Dia. × 3.5 mm LOC × 16 mm Shank Dia. × 90 mm OAL × 20 mm LU ; Round Shank ; 90 Degrees
| Cutting Diameter (DC/DCX) | 16 mm | Weight of Item (WT) | 0.12 kg |
| Cutting Diameter (DC) | 16 mm | Functional Length (LF) | 90 mm |
| Cutting Item Count (CICT) | 5 | Usable Length (LU) | 20 mm |
| Depth of Cut Maximum (APMX) | 3.5 mm | Coolant Supply Property (CSP) | Coolant Thru |
| Overall Length (OAL) | 90 mm | Tool Cutting Edge Angle (KAPR) | 90 Degrees |
| Shank Type | Round | Cutting Direction (HAND) | Right Hand |
| Ramping Angle Maximum (RMPX) | 2 Degrees | Measurement Type | Metric |
| Application | | Facing | Fast Feed Milling | Profiling | Rampdown | Shouldering | Slotting | | Body Material | Steel |
| Connection Diameter Machine Side (DCONMS) | 16 mm | Connection Code Machine Side (CCMS) | Cylindrical |
| Master Insert Identification (MIID) | SOMT 040204 PNTR |
Product Features
| Family Description | Endmills carrying 2 insert geometries, square inserts for 90° shouldering, square inserts for fast feed milling applications. | Country of Origin | Israel |

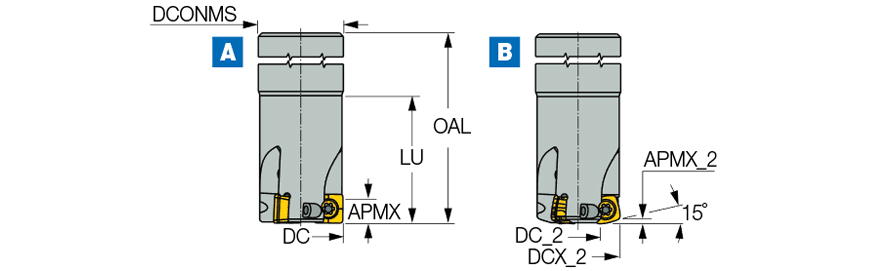

| Remarks | A - with SOMT/CT 0402 insert B - with SOMT 0402-FF insert Tightening torque 0.5 Nxm |
Shipping Info
Package Weight
0.351
