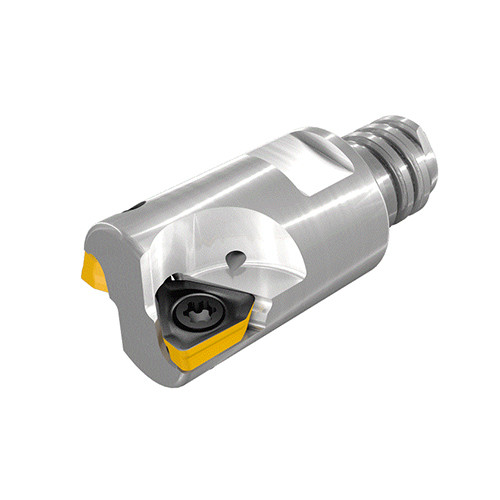

HM390 ETP D10-2-MMT06-05
Indexable End Mill; 10 mm Dia. × 3.5 mm LOC × 9.6 mm Shank Dia. × 21.6 mm OAL ; 2 FL ; 90 Degrees

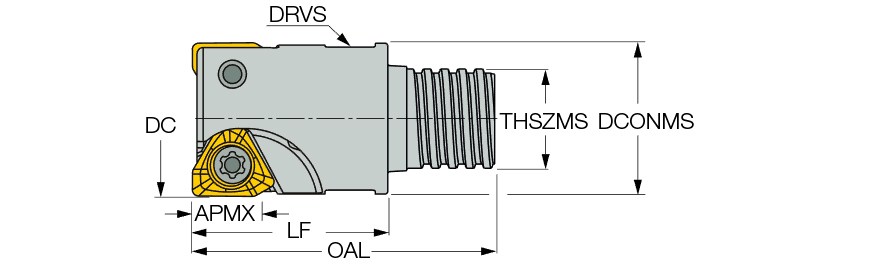

| Cutting Diameter (DC/DCX) | 10 mm | Functional Length (LF) | 15 mm |
| Cutting Diameter (DC) | 10 mm | Tool Type | 90° indexable endmills |
| Cutting Item Count (CICT) | 2 | Connection Thread Nominal Size Machine Side (THSZMS) | T06 |
| Depth of Cut Maximum (APMX) | 3.5 mm | Drive Size (DRVS) | 8 mm |
| Overall Length (OAL) | 21.6 mm | Flute Count (NOF) | 2 |
| Ramping Angle Maximum (RMPX) | 2 Degrees | Coolant Supply Property (CSP) | Coolant Thru |
| Application | | Facing | Helical Interpolation | Rampdown | Shouldering | Slotting | | Tool Cutting Edge Angle (KAPR) | 90 Degrees |
| Connection Diameter Machine Side (DCONMS) | 9.6 mm | Measurement Type | Metric |
| Master Insert Identification (MIID) | HM390 TPKT 0502PDR | Body Material | Steel |
| Weight of Item (WT) | 0.01 kg | Connection Code Machine Side (CCMS) | MultiMaster |
Product Features
| Family Description | 90° endmills with a MULTI-MASTER threaded adaptation carrying HM390 TPKT 0502... triangular inserts with helical cutting edges | Country of Origin | Israel |
| Remarks | For adaptation, click on More Info |
Shipping Info
Package Weight
0.101
