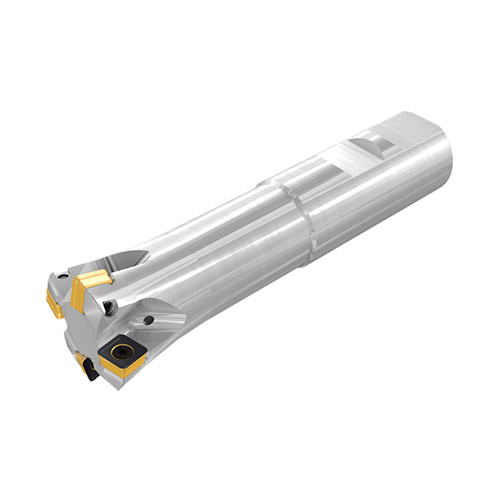

FFQ4 D022-2-044-W20-09

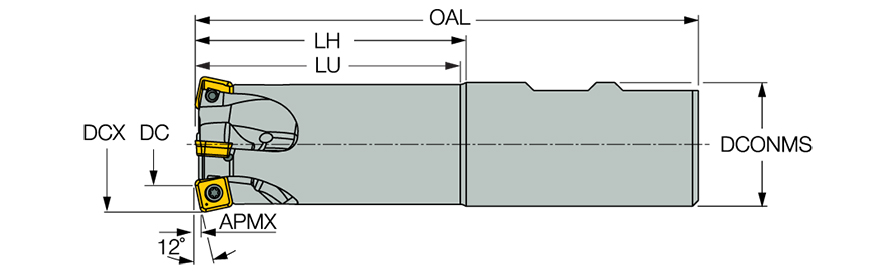

Indexable End Mill; 22 mm Dia. × 1.2 mm LOC × 20 mm Shank Dia. × 94 mm OAL × 40.54 mm LU ; Weldon Shank ; 12 Degrees
| Cutting Diameter (DC/DCX) | 22 mm | Head Length (LH) | 44 mm |
| Cutting Diameter (DC) | 7.7 mm | Functional Length (LF) | 69 mm |
| Cutting Item Count (CICT) | 2 | Usable Length (LU) | 40.54 mm |
| Depth of Cut Maximum (APMX) | 1.2 mm | Torque (TQ) | 2 Nxm |
| Overall Length (OAL) | 94 mm | Coolant Supply Property (CSP) | Coolant Thru |
| Shank Type | Weldon | Tool Cutting Edge Angle (KAPR) | 12 Degrees |
| Ramping Angle Maximum (RMPX) | 8.2 Degrees | Cutting Direction (HAND) | Right Hand |
| Application | | Facing | Fast Feed Milling | Helical Interpolation | Plunging & Recessing | Profiling | Rampdown | Side Plunging | | Measurement Type | Metric |
| Connection Diameter Machine Side (DCONMS) | 20 mm | Body Material | Steel |
| Master Insert Identification (MIID) | FFQ4 SOMT 090412T | Connection Code Machine Side (CCMS) | Weldon |
| Weight of Item (WT) | 0.19 kg | Cutting Diameter Maximum (DCX) | 22 mm |
Product Features
| Family Description | Fast feed endmills carrying single-sided square Inserts with 4 cutting edges | Country of Origin | Israel |

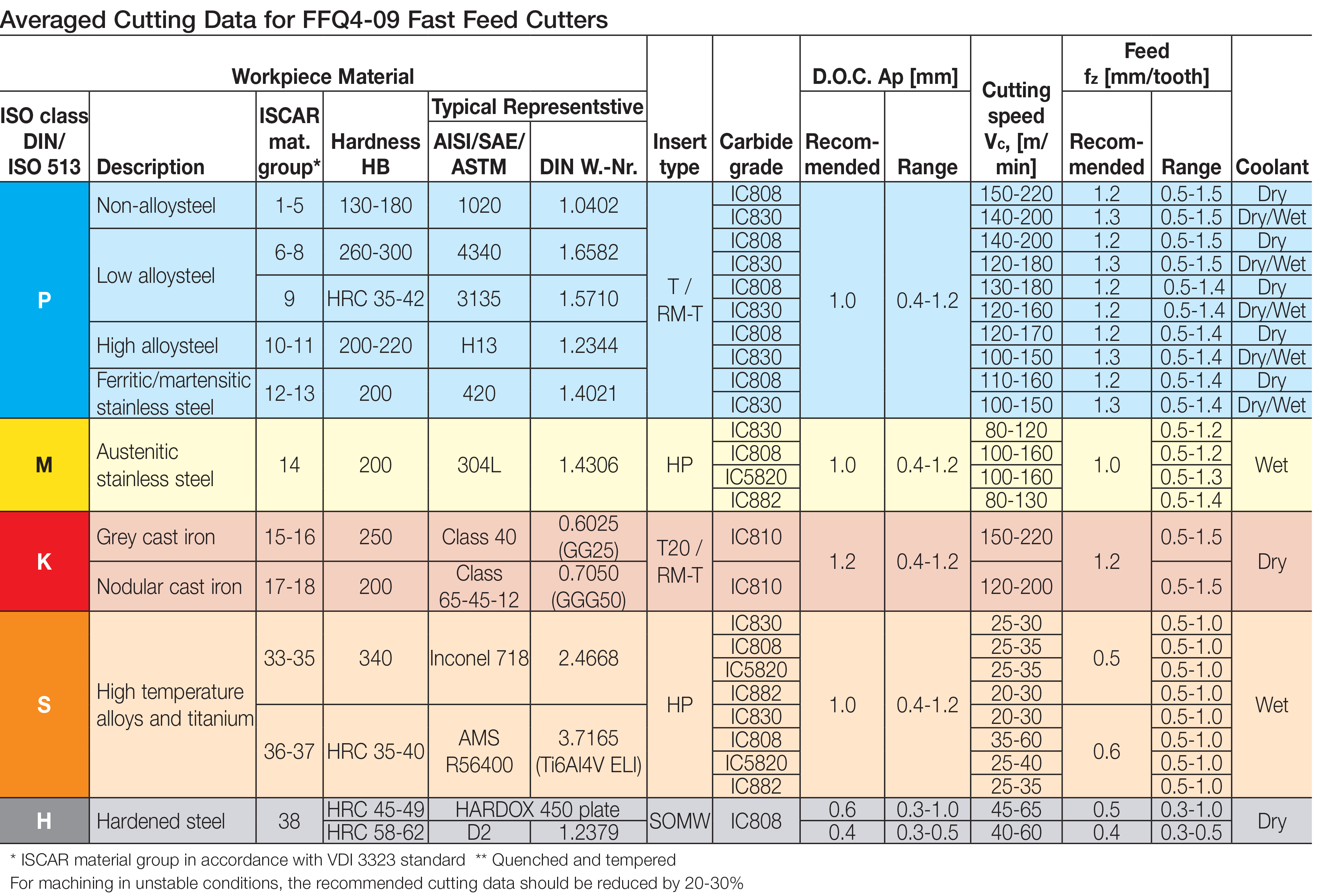

| Remarks | To generate a straight surface without cusps, the width of cut must not exceed DC Radius for programming: for insert SOMT 2.4mm, for insert SOMW 3.0mm When mounting insert SOMW, APMX=1.0mm For slot milling or machining with high tool overhang, the maximum depth of cut should be reduced by 50% For cutting conditions click on More info |
Shipping Info
Package Weight
0.575
