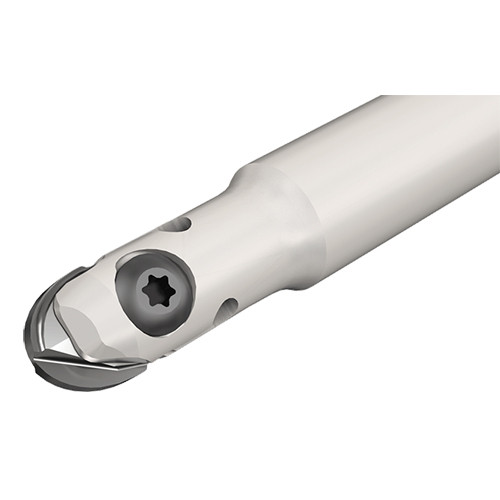

CM D1.00-A-W1.00
Indexable End Mill; 1″ Dia. × 0.72″ LOC × 1″ Shank Dia. × 6.7″ OAL ; Weldon Shank
| Cutting Diameter (DC/DCX) | 1″ | Weight of Item (WT) | 1.27 Lbs |
| Cutting Diameter (DC) | 1″ | Head Length (LH) | 2-3/4″ |
| Cutting Item Count (CICT) | 2 | Tool Type | Ball nose endmills |
| Depth of Cut Maximum (APMX) | 0.72″ | Corner Radius (RE) | 1/2″ |
| Overall Length (OAL) | 6.7″ | Front Type | A |
| Shank Type | Weldon | Cutting Direction (HAND) | Right Hand |
| Ramping Angle Maximum (RMPX) | 90 Degrees | Measurement Type | Inch |
| Application | | Profiling | | Body Material | Steel |
| Connection Diameter Machine Side (DCONMS) | 1″ | Cutting Diameter Maximum (DCX) | 1″ |
Product Features
| Family Description | Ball nose endmills (HELIBALL). | Country of Origin | Israel |
| Remarks | For adaptation, click on More Info. |
Shipping Info
Additional Fees and Notes
0
Package Weight
1.490
