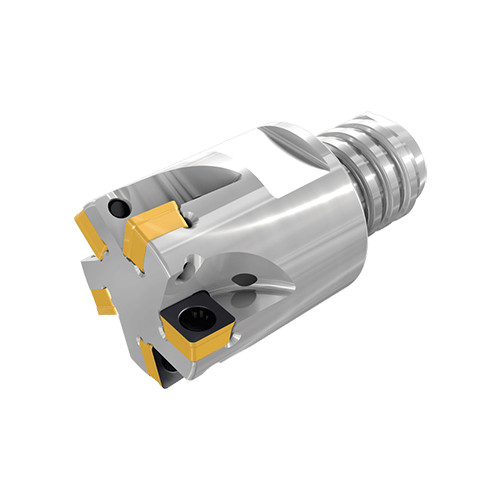

E90SO D20-6-MMT12-04
Indexable End Mill; 20 mm Dia. × 3.5 mm LOC × 19.6 mm Shank Dia. × 38.8 mm OAL ; 6 FL ; 90 Degrees

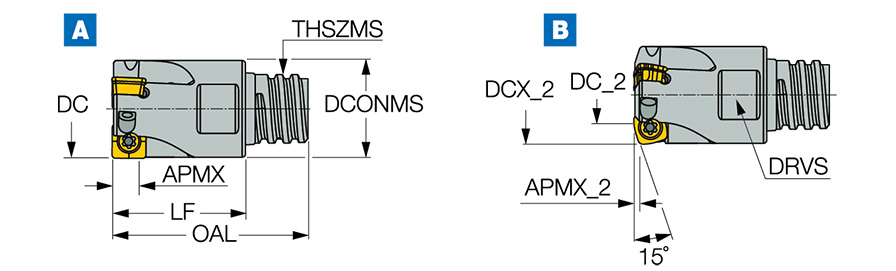

| Cutting Diameter (DC/DCX) | 20 mm | Functional Length (LF) | 25 mm |
| Cutting Diameter (DC) | 20 mm | Connection Thread Nominal Size Machine Side (THSZMS) | T12 |
| Cutting Item Count (CICT) | 6 | Drive Size (DRVS) | 16 mm |
| Depth of Cut Maximum (APMX) | 3.5 mm | Flute Count (NOF) | 6 |
| Overall Length (OAL) | 38.8 mm | Coolant Supply Property (CSP) | Coolant Thru |
| Ramping Angle Maximum (RMPX) | 1 Degrees | Tool Cutting Edge Angle (KAPR) | 90 Degrees |
| Application | | Facing | Fast Feed Milling | Profiling | Rampdown | Shouldering | Slotting | | Cutting Direction (HAND) | Right Hand |
| Connection Diameter Machine Side (DCONMS) | 19.6 mm | Measurement Type | Metric |
| Master Insert Identification (MIID) | SOMT 040204 PNTR | Body Material | Steel |
| Weight of Item (WT) | 0.08 kg | Connection Code Machine Side (CCMS) | MultiMaster |
Product Features
| Family Description | Endmills with a MULTI-MASTER threaded connection carrying 2 insert geometries, square inserts for 90° shouldering, square inserts for fast feed milling applications. | Country of Origin | Israel |
| Remarks | A - with SOMT/CT 0402 insert B - with SOMT 0402-FF insert Tightening torque 0.5 Nxm |
Shipping Info
Package Weight
0.220
