1/4X2 R.008 N.238 4FL

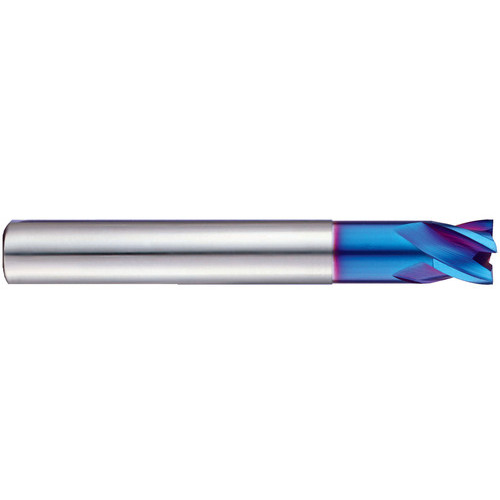

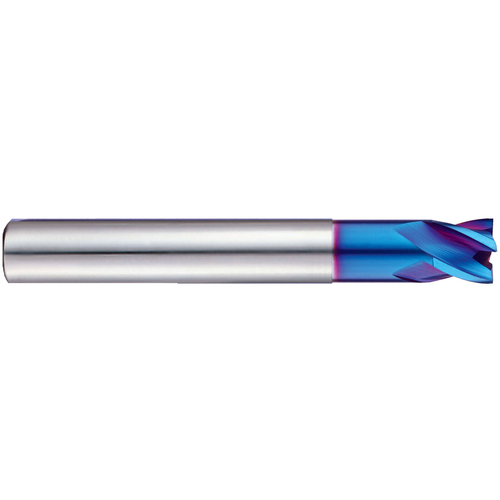

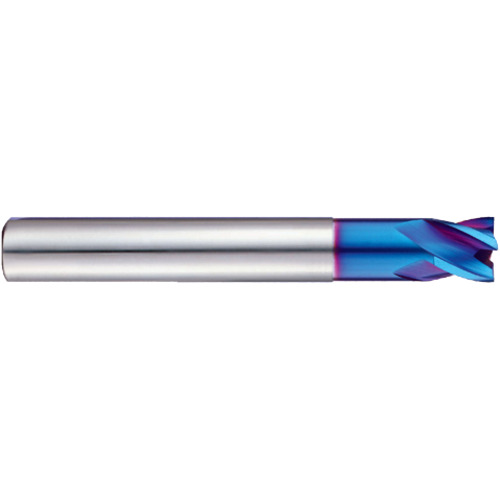

SQ End Mill; 1/4″ Dia. × 5/16″ LOC × 1/4″ Shank Dia. × 2″ OAL ; 0.008″ RE ; 4 FL ; 9/16″ LBS ; Carbide ; AlTiSiN ; Series G850
| Cutting Diameter (DC) | 1/4″ | Usable Length (LU) | 9/16″ |
| Connection Diameter Machine Side (DCONMS) | 1/4″ | Applicable Material | | Steel | Hard Materials | |
| Depth of Cut Maximum (APMX) | 5/16″ | Corner Radius (RE) | 0.008″ |
| Overall Length (OAL) | 2″ | Neck Diameter (DN) | 0.238″ |
| Cutting Edge Material | Carbide | Decimal Equivalent | 0.25″ |
| Coating | AlTiSiN | Measurement Type | Inch |
| Flute Count (NOF) | 4 | Series/List # | G850 |
| Flute Helix Angle (FHA) | 30 Degrees | Cutting Direction (HAND) | Right Hand |
| Shank Type | Round | Center Cutting | Yes |
| End Shape | Corner Radius |
Product Features
| Country of Origin | S.Korea |
Shipping Info
Package Length
0.0011025
Package Width
0.0055125
Package Height
0.0011025
Package Weight
0.056
