1/4X 2-1/2 OAL 1/16CR

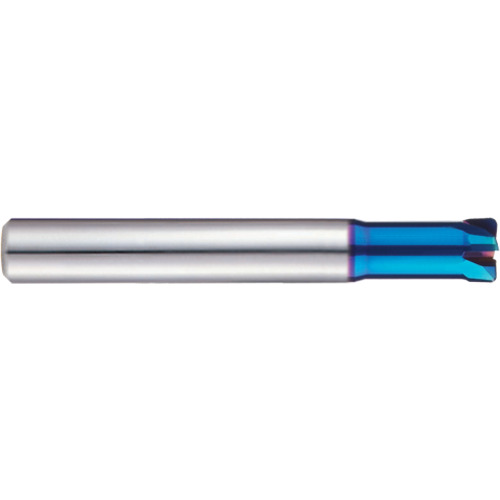

SQ End Mill; 1/4″ Dia. × 0.1″ LOC × 1/4″ Shank Dia. × 2-1/2″ OAL ; 1/16″ RE ; 4 FL ; 1/2″ LBS ; Carbide ; AlTiSiN ; Series G826
| Cutting Diameter (DC) | 1/4″ | Usable Length (LU) | 1/2″ |
| Connection Diameter Machine Side (DCONMS) | 1/4″ | Applicable Material | | Steel | Hard Materials | |
| Depth of Cut Maximum (APMX) | 0.1″ | Corner Radius (RE) | 1/16″ |
| Overall Length (OAL) | 2-1/2″ | Neck Diameter (DN) | 0.22″ |
| Cutting Edge Material | Carbide | Decimal Equivalent | 0.25″ |
| Coating | AlTiSiN | Measurement Type | Inch |
| Flute Count (NOF) | 4 | Series/List # | G826 |
| Flute Helix Angle (FHA) | 0 Degrees | Cutting Direction (HAND) | Right Hand |
| Shank Type | Round | Center Cutting | Yes |
| End Shape | Corner Radius |
Product Features
| Country of Origin | S.Korea |
Shipping Info
Package Length
3.25
Package Width
0.625
Package Height
0.625
Package Weight
0.07
