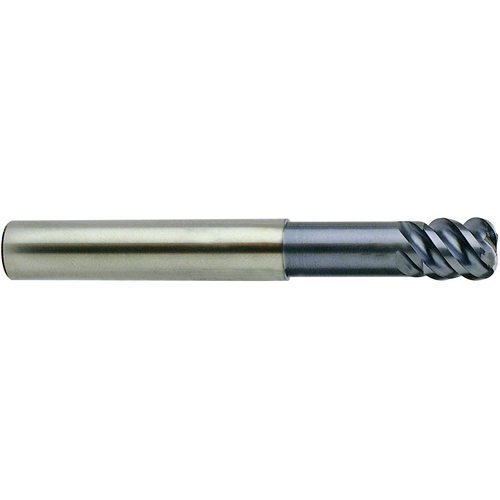

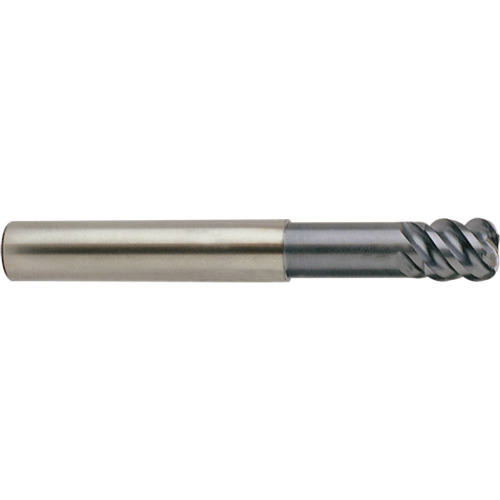

Corner Radius End Mill; 3/8″ Dia. × 7/16″ LOC × 3/8″ Shank Dia. × 3″ OAL ; 4 FL ; Carbide ; ALTiN ; Series EM965
| Cutting Diameter (DC) | 3/8″ | Applicable Material | | Steel | |
| Connection Diameter Machine Side (DCONMS) | 3/8″ | Corner Radius (RE) | 3/32″ |
| Depth of Cut Maximum (APMX) | 7/16″ | Neck Diameter (DN) | 0.344″ |
| Overall Length (OAL) | 3″ | Tool Type | Carbide, 4 Flute 55 Degrees Helix Stub Length Corner Radius |
| Cutting Edge Material | Carbide | Length Group | Stub |
| Coating | AlTiN | Decimal Equivalent | 0.375″ |
| Flute Count (NOF) | 4 | Measurement Type | Inch |
| Flute Helix Angle (FHA) | 55 Degrees | Series/List # | EM965 |
| Shank Type | Round | Cutting Direction (HAND) | Right Hand |
| End Shape | Corner Radius | Center Cutting | Yes |
| Usable Length (LU) | 1-1/4″ |
Product Features
| Country of Origin | S.Korea |
Shipping Info
Package Length
3.625
Package Width
1/0/1900 18:00
Package Height
0.75
Package Weight
0.1675
