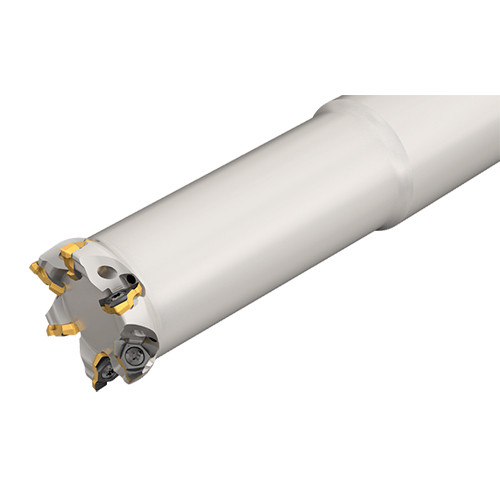

TR6 ER D20-60-4-C20-07
Indexable End Mill; 20 mm Dia. × 1 mm LOC × 20 mm Shank Dia. × 120 mm OAL × 56.5 mm LU ; Round Shank

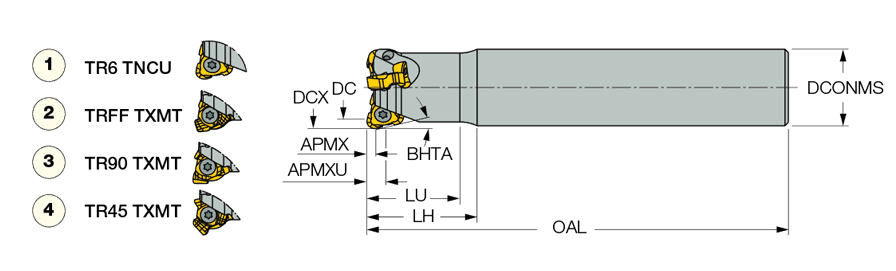

| Cutting Diameter (DC/DCX) | 20 mm | Head Length (LH) | 60 mm |
| Cutting Diameter (DC) | 18 mm | Functional Length (LF) | 120 mm |
| Cutting Item Count (CICT) | 4 | Usable Length (LU) | 56.5 mm |
| Depth of Cut Maximum (APMX) | 1 mm | Body Half Taper Angle (BHTA) | 18 Degrees |
| Overall Length (OAL) | 120 mm | Coolant Supply Property (CSP) | Coolant Thru |
| Shank Type | Round | Cutting Direction (HAND) | Right Hand |
| Application | | Facing | Fast Feed Milling | Profiling | Shouldering | Slanted Shoulder & Chamfer | | Measurement Type | Metric |
| Connection Diameter Machine Side (DCONMS) | 20 mm | Body Material | Steel |
| Master Insert Identification (MIID) | TR6 TNCU 070210 | Connection Code Machine Side (CCMS) | Cylindrical |
| Weight of Item (WT) | 0.22 kg | Cutting Diameter Maximum (DCX) | 20 mm |
Product Features
| Family Description | Multifunction endmills that carry four different insert geometries. | Country of Origin | Israel |

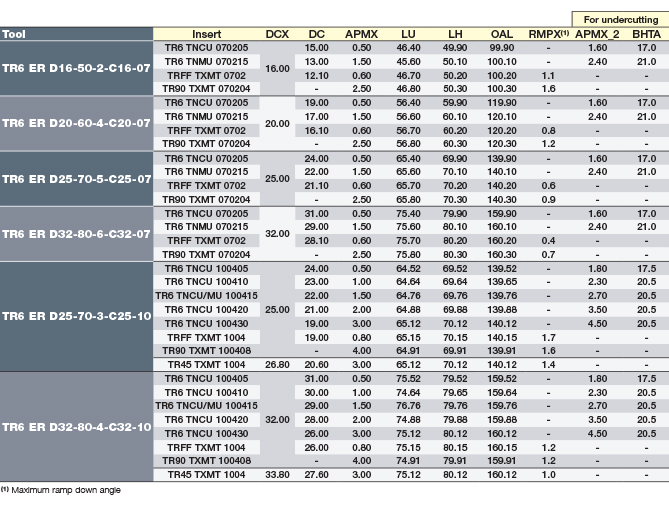

| Remarks | Note: The dimensions refer to master inserts, for other insert radii and geometries dimensions click on More Info |
Shipping Info
Package Weight
0.591
