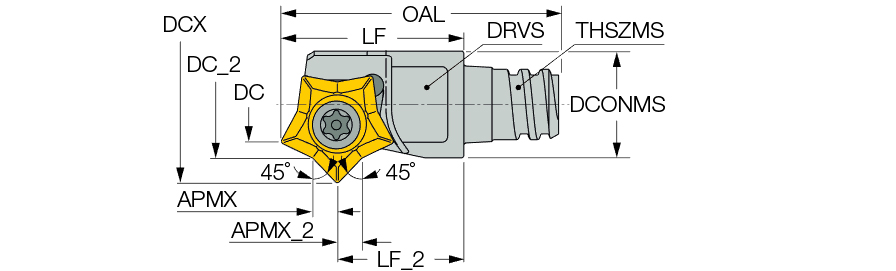

CH45-17/.67-2-MMT08-PN06
Indexable End Mill; 16.7 mm Dia. × 1.5 mm LOC × 12.2 mm Shank Dia. × 25.5 mm OAL ; 45 Degrees
| Cutting Diameter (DC/DCX) | 16.7 mm | Weight of Item (WT) | 0.02 kg |
| Cutting Diameter (DC) | 11.4 mm | Functional Length (LF) | 18 mm |
| Cutting Item Count (CICT) | 2 | Connection Thread Nominal Size Machine Side (THSZMS) | T08 |
| Depth of Cut Maximum (APMX) | 1.5 mm | Drive Size (DRVS) | 10 mm |
| Overall Length (OAL) | 25.5 mm | Tool Cutting Edge Angle (KAPR) | 45 Degrees |
| Application | | Chamfering & Bottom Deburring | Countersinking | Slanted Shoulder & Chamfer | | Measurement Type | Metric |
| Connection Diameter Machine Side (DCONMS) | 12.2 mm | Body Material | Steel |
| Master Insert Identification (MIID) | PNMT 0602 | Cutting Diameter Maximum (DCX) | 16.7 mm |
Product Features
| Family Description | Upper and bottom chamfering endmills with a MULTI-MASTER thrded adaptation carrying pentagonal inserts with 5 front and 5 back cutting edges. | Country of Origin | Israel |
| Remarks | Do not apply lubricant to the MULTI-MASTER threaded connection For adaptation options, click on "More Info" . |
Shipping Info
Package Weight
2
