EPS11032RSS20
Indexable End Mill; 32 mm Dia. × 10.6 mm LOC × 20 mm Shank Dia. × 95 mm OAL ; 4 FL ; Round Shank ; 90 Degrees
| Cutting Diameter (DC/DCX) | 32 mm | Functional Length (LF) | 95 mm |
| Cutting Diameter (DC) | 32 mm | Tool Type | 90 indexable endmills |
| Cutting Item Count (CICT) | 2 | Flute Count (NOF) | 4 |
| Depth of Cut Maximum (APMX) | 10.6 mm | Coolant Supply Property (CSP) | Coolant Thru |
| Overall Length (OAL) | 95 mm | Tool Cutting Edge Angle (KAPR) | 90 Degrees |
| Shank Type | Round | Cutting Direction (HAND) | Right Hand |
| Ramping Angle Maximum (RMPX) | 2.1 Degrees | Measurement Type | Metric |
| Application | | Shoulder Milling | | Body Material | Steel |
| Connection Diameter Machine Side (DCONMS) | 20 mm | Shank Length (LS) | 60 mm |
| Master Insert Identification (MIID) | ASMT11T304PDPR-MJ | Connection Code Machine Side (CCMS) | Cylindrical |
| Weight of Item (WT) | 0.3 Kg | Cutting Diameter Maximum (DCX) | 32 mm |
| Head Length (LH) | 35 mm |
Product Features
| Family Description | High precision shoulder square endmills with ASMT/ASGT11inserts | Country of Origin | Japan |

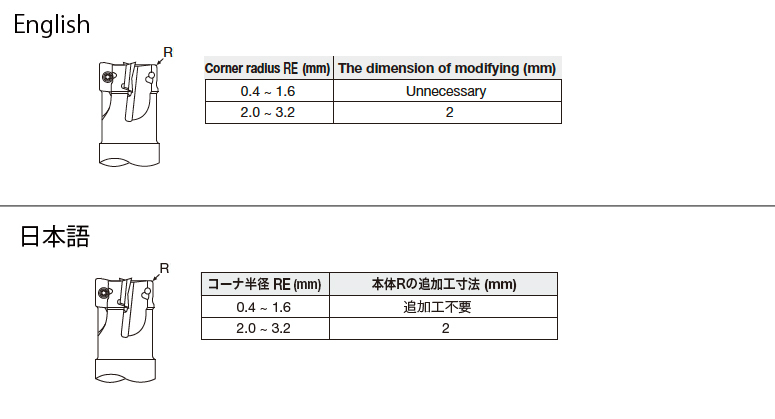

| Remarks | When using inserts with corner radius RE >= 2.0 mm, standard cutter bodies have to be modified "R". Please click on "More Info". |
Shipping Info
Package Weight
3
Related Documentation
When using inserts with corner radius RE >= 2.0 mm, standard cutter bodies have to be modified "R".
