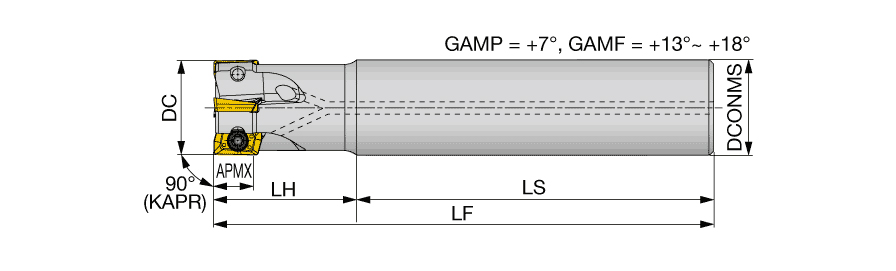

EPO07R022M20.0-03L
Indexable End Mill; 22 mm Dia. × 7 mm LOC × 20 mm Shank Dia. × 185 mm OAL ; 4 FL ; Round Shank ; 90 Degrees
| Cutting Diameter (DC/DCX) | 22 mm | Functional Length (LF) | 185 mm |
| Cutting Diameter (DC) | 22 mm | Tool Type | 90 indexable endmills |
| Cutting Item Count (CICT) | 3 | Flute Count (NOF) | 4 |
| Depth of Cut Maximum (APMX) | 7 mm | Coolant Supply Property (CSP) | Coolant Thru |
| Overall Length (OAL) | 185 mm | Tool Cutting Edge Angle (KAPR) | 90 Degrees |
| Shank Type | Round | Cutting Direction (HAND) | Right Hand |
| Ramping Angle Maximum (RMPX) | 2.1 Degrees | Measurement Type | Metric |
| Application | | Shoulder Milling | | Body Material | Steel |
| Connection Diameter Machine Side (DCONMS) | 20 mm | Shank Length (LS) | 135 mm |
| Master Insert Identification (MIID) | AOMT070204PDPR-MJ | Connection Code Machine Side (CCMS) | Cylindrical |
| Weight of Item (WT) | 0.4 Kg | Cutting Diameter Maximum (DCX) | 22 mm |
| Head Length (LH) | 50 mm |
Product Features
| Family Description | High precision shoulder square endmills with AOMT/AOGT07 inserts | Country of Origin | Japan |
| Remarks | The DC in the above table shows the diameter when MJ and AJ chipbreakers are used. When HJ chipbreaker is used, the tool diameter is equal to the above shown DC + 0.6 mm. The LH and LF in the above table show the lengths when MJ chipbreaker is used. When AJ chipbreaker is used, the lengths are equal to LH, LF + 0.1 mm. When HJ chipbreaker is used, the lengths are equal to LH, LF + 0.5mm. APMX may vary with insert type. |
Shipping Info
Package Weight
0.99
