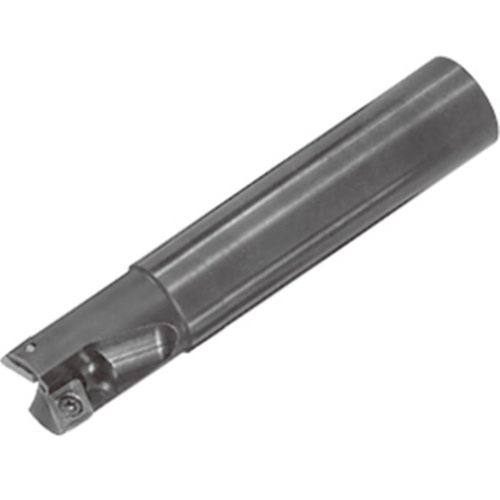

ESD10020RS
Indexable End Mill; 20 mm Dia. × 9 mm LOC × 20 mm Shank Dia. × 130 mm OAL ; 4 FL ; Round Shank ; 90 Degrees

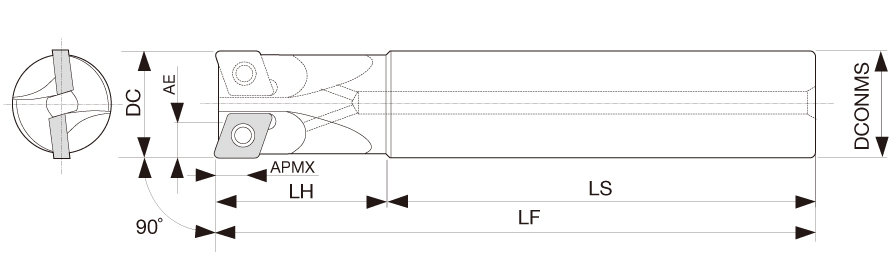

| Cutting Diameter (DC/DCX) | 20 mm | Functional Length (LF) | 120 mm |
| Cutting Diameter (DC) | 20 mm | Tool Type | 90 indexable endmills |
| Cutting Item Count (CICT) | 1 | Flute Count (NOF) | 4 |
| Depth of Cut Maximum (APMX) | 9 mm | Coolant Supply Property (CSP) | Coolant Thru |
| Overall Length (OAL) | 130 mm | Tool Cutting Edge Angle (KAPR) | 90 Degrees |
| Shank Type | Round | Cutting Direction (HAND) | Right Hand |
| Ramping Angle Maximum (RMPX) | 2.1 Degrees | Measurement Type | Metric |
| Application | | Hole Enlarging | Plunging | Pocket Milling | Ramping | Shoulder Milling | Side Milling | Slot Milling | | Body Material | Steel |
| Connection Diameter Machine Side (DCONMS) | 20 mm | Shank Length (LS) | 90 mm |
| Master Insert Identification (MIID) | GDMT10H3PDPR-MJ | Connection Code Machine Side (CCMS) | Cylindrical |
| Weight of Item (WT) | 0.26 kg | Cutting Diameter Maximum (DCX) | 20 mm |
| Head Length (LH) | 30 mm |
Product Features
| Family Description | Multi purpose square endmills | Country of Origin | Japan |
Shipping Info
Package Weight
0.84
