ERF6050R

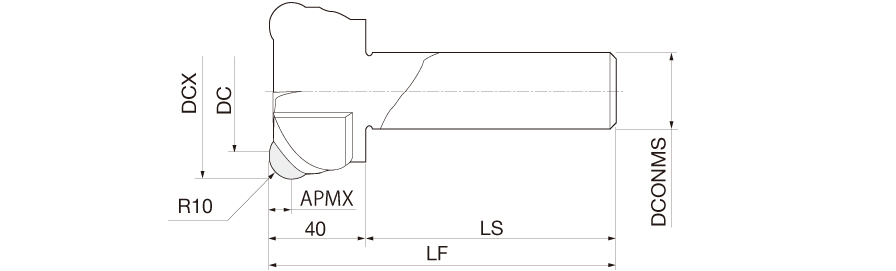

Indexable End Mill; 50 mm Dia. × 10 mm LOC × 32 mm Shank Dia. × 130 mm OAL ; 4 FL ; Round Shank ; 90 Degrees
| Cutting Diameter (DC/DCX) | 50 mm | Functional Length (LF) | 120 mm |
| Cutting Diameter (DC) | 50 mm | Tool Type | Corner rounding endmills |
| Cutting Item Count (CICT) | 3 | Flute Count (NOF) | 4 |
| Depth of Cut Maximum (APMX) | 10 mm | Coolant Supply Property (CSP) | Coolant Thru |
| Overall Length (OAL) | 130 mm | Tool Cutting Edge Angle (KAPR) | 90 Degrees |
| Shank Type | Round | Cutting Direction (HAND) | Right Hand |
| Ramping Angle Maximum (RMPX) | 2.1 Degrees | Measurement Type | Metric |
| Application | | Face Milling | Shoulder Milling With Radius | | Body Material | Steel |
| Connection Diameter Machine Side (DCONMS) | 32 mm | Shank Length (LS) | 80 mm |
| Master Insert Identification (MIID) | RFEN2004M0TN | Connection Code Machine Side (CCMS) | Cylindrical |
| Weight of Item (WT) | 1.23 kg | Cutting Diameter Maximum (DCX) | 70 mm |
| Head Length (LH) | 40 mm |
Product Features
| Family Description | Indexbal endmill with 20mm high posi-rake button insert for difficult-to-cut material | Country of Origin | Japan |
| Remarks | These are not irregular pitch spec. |
Shipping Info
Package Weight
3.045
