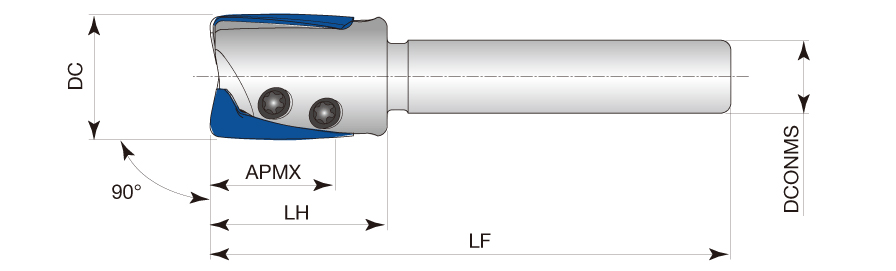

EPH13R012M07.0-2
Indexable End Mill; 12 mm Dia. × 12 mm LOC × 7 mm Shank Dia. × 130 mm OAL ; 4 FL ; Round Shank ; 90 Degrees
| Cutting Diameter (DC/DCX) | 12 mm | Head Length (LH) | 17 mm |
| Cutting Diameter (DC) | 12 mm | Functional Length (LF) | 50 mm |
| Cutting Item Count (CICT) | 2 | Tool Type | 90 indexable endmills |
| Depth of Cut Maximum (APMX) | 12 mm | Flute Count (NOF) | 4 |
| Overall Length (OAL) | 130 mm | Coolant Supply Property (CSP) | Coolant Thru |
| Shank Type | Round | Tool Cutting Edge Angle (KAPR) | 90 Degrees |
| Ramping Angle Maximum (RMPX) | 2.1 Degrees | Cutting Direction (HAND) | Right Hand |
| Application | | Hole Enlarging | Plunging | Pocket Milling | Ramping | Shoulder Milling | Shoulder Milling With Radius | Side Milling | Slot Milling | Slot Milling With Radius | | Measurement Type | Metric |
| Connection Diameter Machine Side (DCONMS) | 7 mm | Body Material | Steel |
| Master Insert Identification (MIID) | XHGR130204ER-MJ | Connection Code Machine Side (CCMS) | Cylindrical |
| Weight of Item (WT) | 0.73 Kg | Cutting Diameter Maximum (DCX) | 12 mm |
Product Features
| Family Description | High precision shoulder square endmills with slimed shank for small lathes | Country of Origin | Japan |
Shipping Info
Package Weight
0.137
