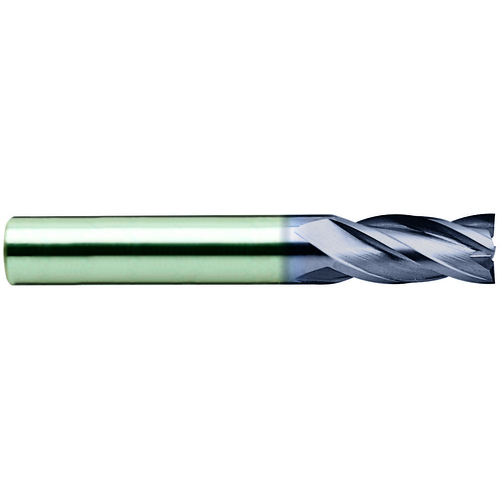

Square End Mill; 9.5 mm Dia. × 22 mm LOC × 9.5 mm Shank Dia. × 72 mm OAL ; 4 FL ; Carbide ; YG Tylon F ; Series EH540
SQ End Mill; 9.5 mm Dia. × 22 mm LOC × 9.5 mm Shank Dia. × 72 mm OAL ; 4 FL ; Carbide ; TiAlN ; Series EH540
| Cutting Diameter (DC) | 9.5 mm | End Shape | Square |
| Connection Diameter Machine Side (DCONMS) | 9.5 mm | Applicable Material | | Steel | |
| Depth of Cut Maximum (APMX) | 22 mm | Tool Type | 4 Flute Long Length |
| Overall Length (OAL) | 72 mm | Length Group | Long |
| Cutting Edge Material | Carbide | Decimal Equivalent | 0.374″ |
| Coating | TiAlN | Measurement Type | Metric |
| Flute Count (NOF) | 4 | Series/List # | EH540 |
| Flute Helix Angle (FHA) | 30 Degrees | Cutting Direction (HAND) | Right Hand |
| Shank Type | Round | Center Cutting | Yes |
Product Features
| Country of Origin | S.Korea |
Shipping Info
Package Length
3.625
Package Width
0.75
Package Height
0.75
Package Weight
0.166
