ERD12200RSU
Indexable End Mill; 2″ Dia. × 0.236″ LOC × 32 mm Shank Dia. × 130 mm OAL ; 4 FL ; Round Shank ; 90 Degrees

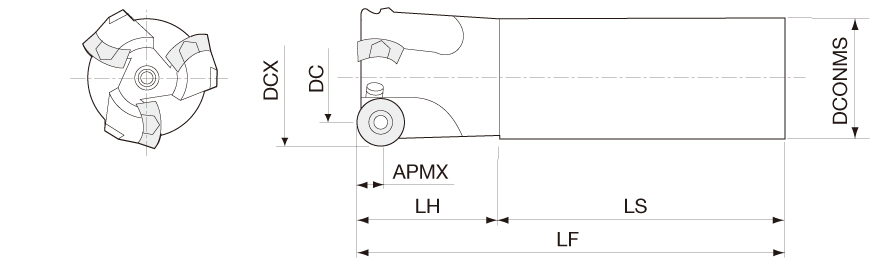

| Cutting Diameter (DC/DCX) | 2″ | Head Length (LH) | 30 mm |
| Cutting Diameter (DC) | 2″ | Functional Length (LF) | 2-1/2″ |
| Cutting Item Count (CICT) | 4 | Tool Type | Corner rounding endmills |
| Depth of Cut Maximum (APMX) | 0.236″ | Flute Count (NOF) | 4 |
| Overall Length (OAL) | 130 mm | Coolant Supply Property (CSP) | Coolant Thru |
| Shank Type | Round | Tool Cutting Edge Angle (KAPR) | 90 Degrees |
| Ramping Angle Maximum (RMPX) | 2.1 Degrees | Cutting Direction (HAND) | Right Hand |
| Application | | Face Milling | Hole Enlarging | Pocket Milling | Profiling | Ramping | Shoulder Milling With Radius | Slot Milling With Radius | | Measurement Type | Inch |
| Connection Diameter Machine Side (DCONMS) | 32 mm | Body Material | Steel |
| Master Insert Identification (MIID) | RDMT1204ZDPN-MJ | Connection Code Machine Side (CCMS) | Cylindrical |
| Weight of Item (WT) | 0.73 Kg | Cutting Diameter Maximum (DCX) | 2″ |
Product Features
| Family Description | Indexable endmills with button insert of 8mm or 6mm radius | Country of Origin | Japan |
Shipping Info
Package Weight
2.52
