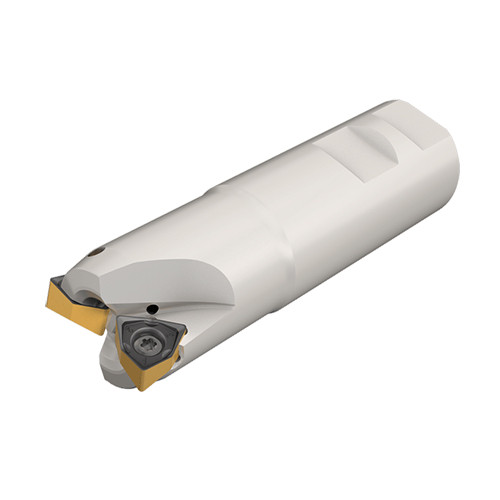

H690 EWN D1.50-4-W1.50R07
Indexable End Mill; 1-1/2″ Dia. × 0.275″ LOC × 1-1/2″ Shank Dia. × 4-1/4″ OAL ; 4 FL ; Weldon Shank ; 90 Degrees

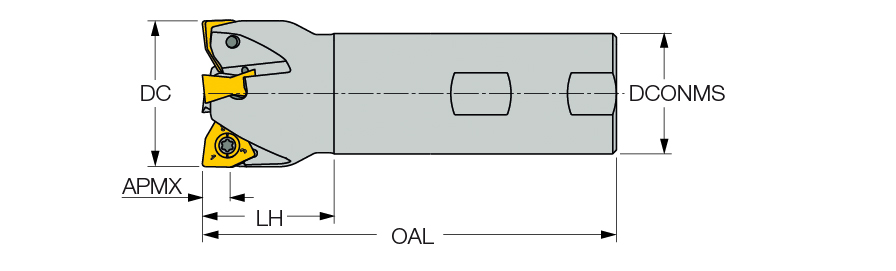

| Cutting Diameter (DC/DCX) | 1-1/2″ | Head Length (LH) | 1-1/2″ |
| Cutting Diameter (DC) | 1-1/2″ | Functional Length (LF) | 3.063″ |
| Cutting Item Count (CICT) | 4 | Tool Type | 90° indexable endmills |
| Depth of Cut Maximum (APMX) | 0.275″ | Flute Count (NOF) | 4 |
| Overall Length (OAL) | 4-1/4″ | Coolant Supply Property (CSP) | Coolant Thru |
| Shank Type | Weldon | Tool Cutting Edge Angle (KAPR) | 90 Degrees |
| Ramping Angle Maximum (RMPX) | 1.5 Degrees | Cutting Direction (HAND) | Right Hand |
| Application | | Facing | Rampdown | Shouldering | Slotting | | Measurement Type | Inch |
| Connection Diameter Machine Side (DCONMS) | 1-1/2″ | Body Material | Steel |
| Master Insert Identification (MIID) | H690 WNMU 070512PNTR | Connection Code Machine Side (CCMS) | Weldon |
| Weight of Item (WT) | 1.74 Lbs |
Product Features
| Family Description | 90° endmills carrying H690 WNMU 0705 double-sided trigonal inserts with 6 helical cutting edges. | Country of Origin | Israel |
| Remarks | For adaptation, click on More Info. |
Shipping Info
Package Weight
2.030
