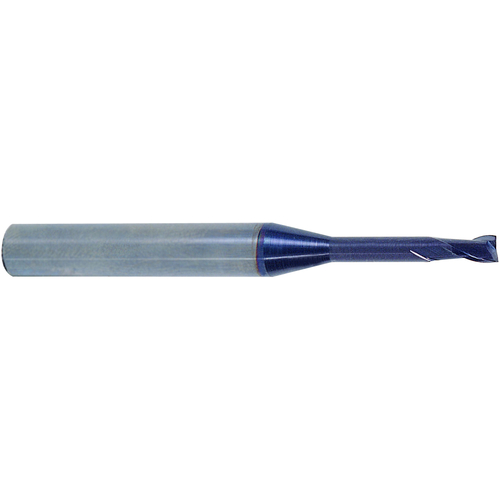

Square End Mill; 1/16″ Dia. × 3/32″ LOC × 1/8″ Shank Dia. × 2″ OAL ; 2 FL ; Carbide ; ALTiN ; Series EM966
SQ End Mill; 1/16″ Dia. × 3/32″ LOC × 1/8″ Shank Dia. × 2″ OAL ; 2 FL ; Carbide ; AlTiN ; Series EM966
| Cutting Diameter (DC) | 1/16″ | Usable Length (LU) | 1/2″ |
| Connection Diameter Machine Side (DCONMS) | 1/8″ | Applicable Material | | Steel | |
| Depth of Cut Maximum (APMX) | 3/32″ | Neck Diameter (DN) | 0.06″ |
| Overall Length (OAL) | 2″ | Length Group | Miniature Regular |
| Cutting Edge Material | Carbide | Decimal Equivalent | 0.0625″ |
| Coating | AlTiN | Measurement Type | Inch |
| Flute Count (NOF) | 2 | Series/List # | EM966 |
| Flute Helix Angle (FHA) | 30 Degrees | Cutting Direction (HAND) | Right Hand |
| Shank Type | Round | Center Cutting | Yes |
| End Shape | Square |
Product Features
| Country of Origin | S.Korea |
Shipping Info
Package Length
2.625
Package Width
1/0/1900 15:00
Package Height
0.625
Package Weight
0.018
