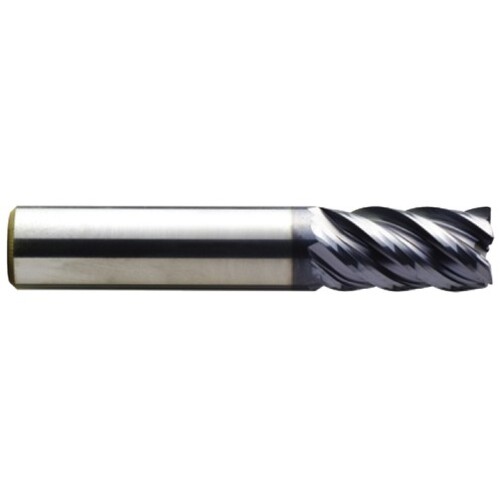

Square End Mill; 1/4″ Dia. × 1/2″ LOC × 1/4″ Shank Dia. × 2-1/2″ OAL ; 5 FL ; Carbide ; AlTiN ; Series EMB76
SQ End Mill; 1/4″ Dia. × 1/2″ LOC × 1/4″ Shank Dia. × 2-1/2″ OAL ; 5 FL ; Carbide ; AlTiN ; Series EMB76
| Cutting Diameter (DC) | 1/4″ | End Shape | Square |
| Connection Diameter Machine Side (DCONMS) | 1/4″ | Applicable Material | | Steel | Stainless Steel | Super-Alloys / Titanium | |
| Depth of Cut Maximum (APMX) | 1/2″ | Length Group | Regular |
| Overall Length (OAL) | 2-1/2″ | Decimal Equivalent | 0.25″ |
| Cutting Edge Material | Carbide | Measurement Type | Inch |
| Coating | AlTiN | Series/List # | EMB76 |
| Flute Count (NOF) | 5 | Cutting Direction (HAND) | Right Hand |
| Flute Helix Angle (FHA) | Variable | Center Cutting | Yes |
| Shank Type | Round |
Product Features
| Country of Origin | S.Korea |
Shipping Info
Package Length
3.25
Package Width
0.625
Package Height
0.625
Package Weight
0.069
