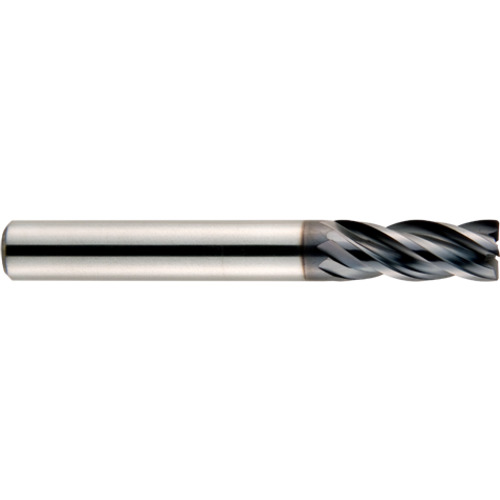

Corner Radius End Mill; 9/16″ Dia. × 1-1/8″ LOC × 9/16″ Shank Dia. × 3-1/2″ OAL ; 4 FL ; Carbide ; AlTiN ; Series EMB38
| Cutting Diameter (DC) | 9/16″ | Shank Type | Weldon |
| Connection Diameter Machine Side (DCONMS) | 9/16″ | End Shape | Corner Radius |
| Depth of Cut Maximum (APMX) | 1-1/8″ | Applicable Material | | Steel | Stainless Steel | Super-Alloys / Titanium | |
| Overall Length (OAL) | 3-1/2″ | Decimal Equivalent | 0.5625″ |
| Cutting Edge Material | Carbide | Measurement Type | Inch |
| Coating | AlTiN | Series/List # | EMB38 |
| Flute Count (NOF) | 4 | Cutting Direction (HAND) | Right Hand |
| Flute Helix Angle (FHA) | Variable | Center Cutting | Yes |
Product Features
| Country of Origin | S.Korea |
Shipping Info
Package Length
4.125
Package Width
1
Package Height
1
Package Weight
0.41
