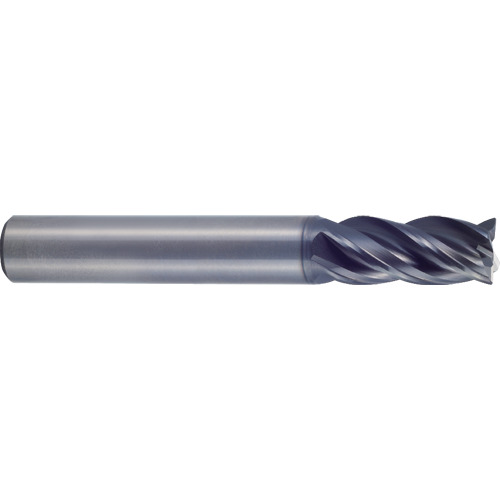

Corner Radius End Mill; 16 mm Dia. × 32 mm LOC × 16 mm Shank Dia. × 92 mm OAL ; 4 FL ; Carbide ; Y-Coating ; Series GMF58
| Cutting Diameter (DC) | 16 mm | End Shape | Corner Radius |
| Connection Diameter Machine Side (DCONMS) | 16 mm | Applicable Material | | Steel | Stainless Steel | Cast Iron | Super-Alloys / Titanium | |
| Depth of Cut Maximum (APMX) | 32 mm | Corner Radius (RE) | 3 mm |
| Overall Length (OAL) | 92 mm | Tool Type | 4 Flute Standard Length |
| Cutting Edge Material | Carbide | Decimal Equivalent | 0.6299″ |
| Coating | AlCrN | Measurement Type | Metric |
| Flute Count (NOF) | 4 | Series/List # | GMF58 |
| Flute Helix Angle (FHA) | 35 Degrees/37 Degrees | Cutting Direction (HAND) | Right Hand |
| Shank Type | Round | Center Cutting | Yes |
Product Features
| Country of Origin | S.Korea |
Shipping Info
Package Length
4.125
Package Width
1
Package Height
1
Package Weight
0.522
