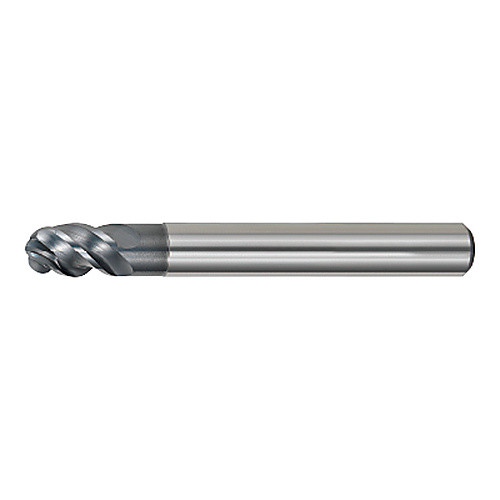

VQ4SVBR0200 CARBIDE ENDMILL
SQ End Mill; 4 mm Dia. × 6 mm LOC × 6 mm Shank Dia. × 50 mm OAL ; AlTiSiN ; Series VQ4SVB
| Cutting Diameter (DC) | 4 mm | Corner Radius (RE) | 2 mm |
| Connection Diameter Machine Side (DCONMS) | 6 mm | Neck Diameter (DN) | 3.9 mm |
| Depth of Cut Maximum (APMX) | 6 mm | Body Half Taper Angle (BHTA) | 12 Degrees |
| Overall Length (OAL) | 50 mm | Peripheral Effective Cutting Edge Count (ZEFP) | 4 |
| Coating | AlTiSiN | Length Group | Short |
| Flute Helix Angle (FHA) | 45 Degrees | Measurement Type | Metric |
| End Shape | Ball | Series/List # | VQ4SVB |
| Usable Length (LU) | 10 mm |
Product Features
| Country of Origin | Japan |
Shipping Info
Package Weight
0.4
