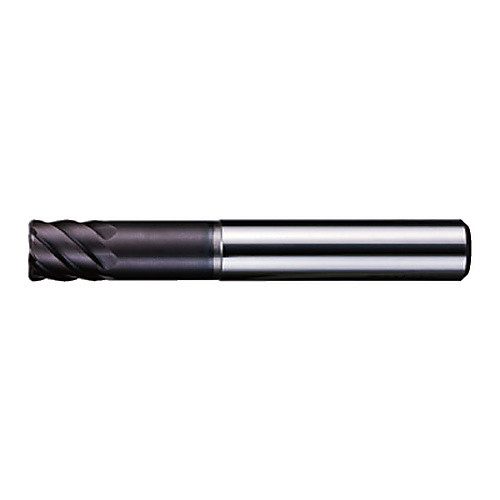

VFSDRBD1000R050 HP END MILL
Corner Radius End Mill; 10 mm Dia. × 10 mm LOC × 10 mm Shank Dia. × 70 mm OAL ; 6 FL ; AlTiCrN ; Series VFSDRB
| Cutting Diameter (DC) | 10 mm | Usable Length (LU) | 30 mm |
| Connection Diameter Machine Side (DCONMS) | 10 mm | Corner Radius (RE) | 0.5 mm |
| Depth of Cut Maximum (APMX) | 10 mm | Neck Diameter (DN) | 9.7 mm |
| Overall Length (OAL) | 70 mm | Peripheral Effective Cutting Edge Count (ZEFP) | 6 |
| Coating | AlTiCrN | Length Group | Short |
| Flute Count (NOF) | 6 | Measurement Type | Metric |
| Flute Helix Angle (FHA) | 45 Degrees | Series/List # | VFSDRB |
| End Shape | Corner Radius |
Product Features
| Country of Origin | Japan |
Shipping Info
Package Weight
.9999
