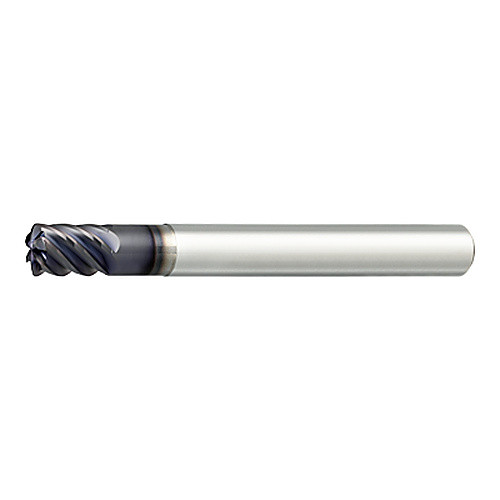

VFFDRBD0600 CATALOG SOLID CARB EM
Corner Radius End Mill; 6 mm Dia. × 0.36 mm LOC × 6 mm Shank Dia. × 80 mm OAL ; AlTiCrN ; Series VFFDRB
| Cutting Diameter (DC) | 6 mm | Corner Radius (RE) | 0.6 mm |
| Connection Diameter Machine Side (DCONMS) | 6 mm | Ramping Angle Maximum (RMPX) | 1.7 Degrees |
| Depth of Cut Maximum (APMX) | 0.36 mm | Neck Diameter (DN) | 5.6 mm |
| Overall Length (OAL) | 80 mm | Peripheral Effective Cutting Edge Count (ZEFP) | 4 |
| Coating | AlTiCrN | Length Group | Long - Necked |
| Flute Helix Angle (FHA) | 40 Degrees | Measurement Type | Metric |
| End Shape | Corner Radius | Series/List # | VFFDRB |
| Usable Length (LU) | 18 mm |
Product Features
| Country of Origin | Japan |
Shipping Info
Package Weight
.9999
