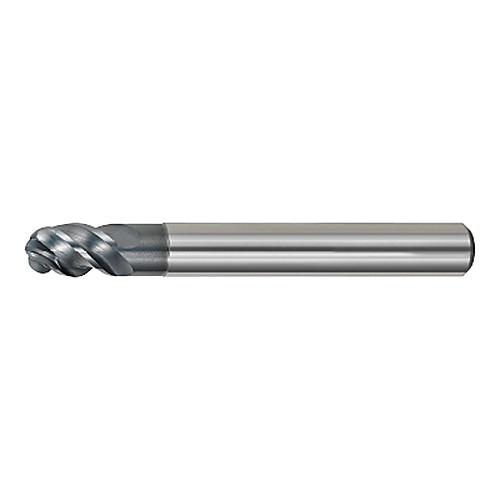

VQ4SVBD3/16 CARBIDE ENDMILL
SQ End Mill; 3/16″ Dia. × 0.281″ LOC × 1/4″ Shank Dia. × 2″ OAL ; 3/32″ RE ; 0.4689″ LBS ; AlTiSiN ; Series VQ4SVB_INCH
| Cutting Diameter (DC) | 3/16″ | Corner Radius (RE) | 3/32″ |
| Connection Diameter Machine Side (DCONMS) | 1/4″ | Neck Diameter (DN) | 0.1835″ |
| Depth of Cut Maximum (APMX) | 0.281″ | Body Half Taper Angle (BHTA) | 12 Degrees |
| Overall Length (OAL) | 2″ | Peripheral Effective Cutting Edge Count (ZEFP) | 4 |
| Coating | AlTiSiN | Length Group | Short |
| Flute Helix Angle (FHA) | 45 Degrees | Decimal Equivalent | 0.1875″ |
| End Shape | Ball | Measurement Type | Inch |
| Usable Length (LU) | 0.4689″ | Series/List # | VQ4SVB_INCH |
Product Features
| Country of Origin | Japan |
Shipping Info
Package Weight
0.4
