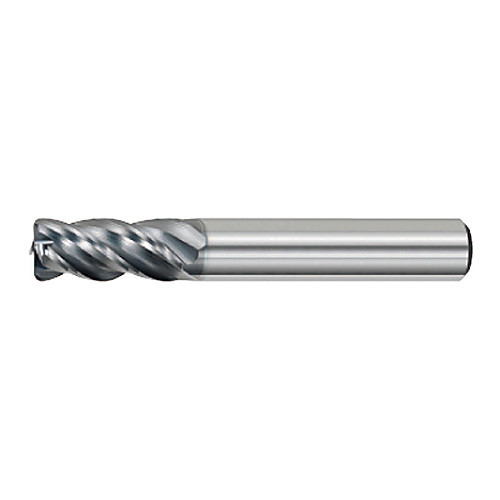

VQMHVRBD3/8R060 CARBIDE ENDMILL
SQ End Mill; 3/8″ Dia. × 7/8″ LOC × 3/8″ Shank Dia. × 3″ OAL ; 0.06″ RE ; AlTiSiN ; Series VQMHVRB_INCH
| Cutting Diameter (DC) | 3/8″ | Corner Radius (RE) | 0.06″ |
| Connection Diameter Machine Side (DCONMS) | 3/8″ | Peripheral Effective Cutting Edge Count (ZEFP) | 4 |
| Depth of Cut Maximum (APMX) | 7/8″ | Length Group | Medium |
| Overall Length (OAL) | 3″ | Decimal Equivalent | 0.375″ |
| Coating | AlTiSiN | Measurement Type | Inch |
| End Shape | Corner Radius | Series/List # | VQMHVRB_INCH |
Product Features
| Country of Origin | Japan |
Shipping Info
Package Weight
0.4
