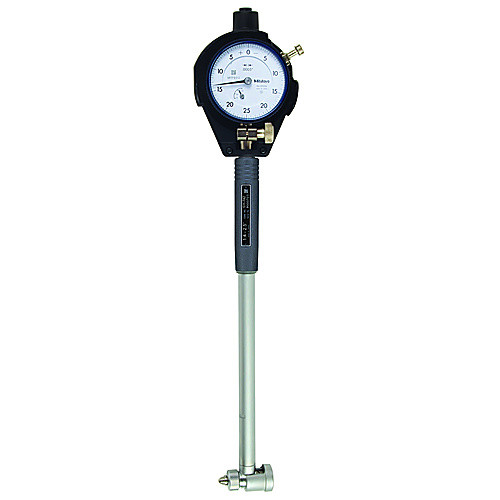

1.4″-2.5″ DIAL/B GA 742
| Type | Bore Gage | Model No | 511-742 |
| Minimum Measurement | 1.400″ | Included | AGD Series 2 Dial Indicator and fitted carrying case |
| Maximum Measurement | 2.500″ | Number of Spacers | 4 |
| Graduation | 0.0005″ | Number of Anvils/Rods | 6 |
| Depth | 6.0″ | Probe Type | Standard Type |
Product Features
| Remarks | •All Mitutoyo Dial Bore Gages are supplied with AGD Series 2 Dial Indicator and fitted carrying case •A reference chart is furnished which indicates the spacer and rod sizes to be selected for the specific range. •10″ extension rod to increase measuring depth from the edge is available for 511–185, 186, 188 and 189 (Part No. 101421) •To increase the length of interchangeable measuring rods, a 2″ extension collar is available for use with 511–162 and 511–166 (Part No. 101421) | Country of Origin | Japan |
Shipping Info
Package Weight
3
