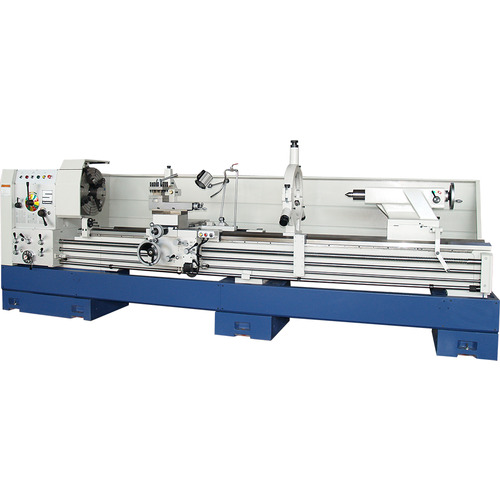

Large Spindle Hole Lathe - Model 26680-26″ Swing-80″ Between Centers-15 hp Motor
| Swing Distance | 26″ | Cross Slide Travel | 14″ |
| Distance Between Centers | 80″ | Swing Over Gap | 35″ |
| Horsepower | 15 hp | Tailstock Taper | 5MT |
| Voltage | 220 V | Maximum Thread Per Inch | 2″ |
| Phase | 3 Phase | Minimum Threads Per Inch | 28 |
| Spindle Taper | D1-11 | Model No | 26680 |
| Spindle Hole Diameter | 6.1″ | Spindle Type | D1-11 |
| Number of Spindle Speeds | 12 | Swing Over Crossslide | 18″ |
| Weight | 7,920 lbs | Inch Thread Range | 2-28 TPI (36 changes) |
| Maximum Spindle Speed | 800 RPM | Metric Thread Range | 0.08-14 mm (65 changes) |
| Minimum Spindle Speed | 13 RPM |
Product Features
| Remarks | •Standard Features: ? Hardened and ground bedways ? Big 6.1″ or 9.1″ thru hole ? Removable gap ? Inch/metric threads ? Conveniently located controls ? Feed reversing at the apron ? Hardened and ground cross slide ways ? 4-way rapid traverse ? Full length splash guard ? 2 speed tailstock •Standard Accessories Include: Thread dial, Standard steady rest with roller tips, Follow rest, Coolant system, Taper attachment, 16″ 3 ? Jaw chuck with 6.1″ thru hole, 20″ 4 ? Jaw chuck with 6.1″ thru hole, 25″ 4 ? Jaw chuck with 9.1″ thru hole, Carriage stop, Work light •1 Year Warranty ? on Parts & Labor •6 Months ? on all Electrical •F.O.B. Oklahoma City, OK | Country of Origin | Taiwan |
Shipping Info
Hazard Code
T
Shipping Notes
Ships by Truck. Additional Costs Apply.
Package Weight
7920
