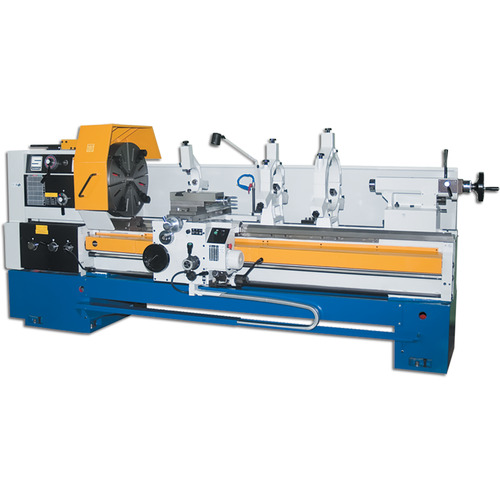

24X120 SUMMIT ENGINE LATHE W/4″
| Swing Distance | 25″ | Cross Slide Travel | 12-1/8″ |
| Distance Between Centers | 120″ | Swing Over Gap | 32-5/8″ |
| Horsepower | 15 hp | Tailstock Taper | 5MT |
| Voltage | 220 V | Maximum Thread Per Inch | 1/4″ |
| Phase | 3 Phase | Minimum Threads Per Inch | 60 |
| Spindle Taper | D1-8 | Model No | 244120 |
| Spindle Hole Diameter | 4-1/8″ | Spindle Type | D1-8 |
| Number of Spindle Speeds | 21 | Swing Over Crossslide | 17″ |
| Weight | 9,200 lbs | Inch Thread Range | 1/4-60 TPI (64 changes) |
| Maximum Spindle Speed | 1,250 RPM | Metric Thread Range | .5-120 mm (64 changes) |
| Minimum Spindle Speed | 20 RPM |
Product Features
| Country of Origin | Bulgaria |
Shipping Info
Hazard Code
T
Shipping Notes
Ships by Truck. Additional Costs Apply.
Package Weight
9200
