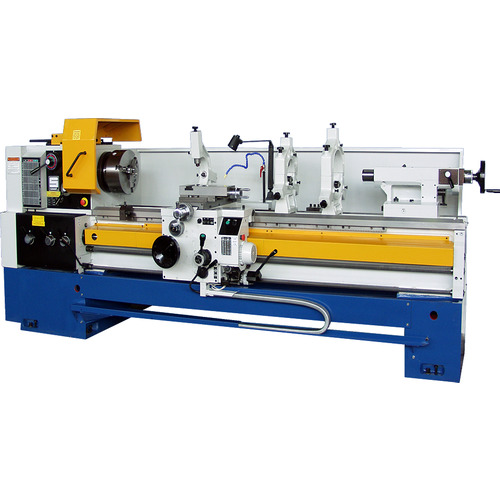

20X60 SUMMIT ENGINE LATHE W/4″
Additional Tariff Surcharge of 10 %
| Swing Distance | 20-1/4″ | Cross Slide Travel | 11-3/8″ |
| Distance Between Centers | 60″ | Swing Over Gap | 27-5/8″ |
| Horsepower | 10 hp | Tailstock Taper | 5MT |
| Voltage | 220 V | Maximum Thread Per Inch | 1/4″ |
| Phase | 3 Phase | Minimum Threads Per Inch | 60 |
| Spindle Taper | D1-8 | Model No | 20460 |
| Spindle Hole Diameter | 4-1/8″ | Spindle Type | D1-8 |
| Number of Spindle Speeds | 15 | Swing Over Crossslide | 11-7/8″ |
| Weight | 8,600 lbs | Inch Thread Range | 1/4-60 TPI (64 changes) |
| Maximum Spindle Speed | 1,400 RPM | Metric Thread Range | .5-120 mm (64 changes) |
| Minimum Spindle Speed | 11.5 RPM |
Product Features
| Country of Origin | Bulgaria |
Shipping Info
Hazard Code
T
Shipping Notes
Ships by Truck. Additional Costs Apply.
Package Length
134.00000
Package Width
48.00000
Package Height
67.00000
Package Weight
8600
