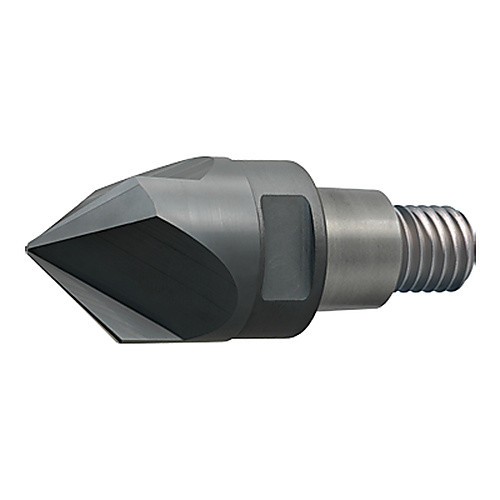

IMX12CH3L0500A45 EP7020 SOLID EM
Chamfer End Mill; 1/2″ Dia. × 0.22″ LOC × 0.488″ Shank Dia. ; Carbide ; Series iMX_CH3L_INCH
| Cutting Diameter (DC) | 1/2″ | Grade | EP7020 |
| Connection Diameter Machine Side (DCONMS) | 0.488″ | Head Length (LH) | 0.789″ |
| Depth of Cut Maximum (APMX) | 0.22″ | Peripheral Effective Cutting Edge Count (ZEFP) | 3 |
| Cutting Edge Material | Carbide | Decimal Equivalent | 0.5″ |
| Flute Helix Angle (FHA) | 5 Degrees | Measurement Type | Inch |
| End Shape | Chamfer | Series/List # | iMX_CH3L_INCH |
| Applicable Material | | Steel | Stainless Steel | Super-Alloys / Titanium | Aluminum / Non-Ferrous Materials | | Tool Cutting Edge Angle (KAPR) | 45 Degrees |
Product Features
| Country of Origin | Japan |
Shipping Info
Package Weight
.9999
