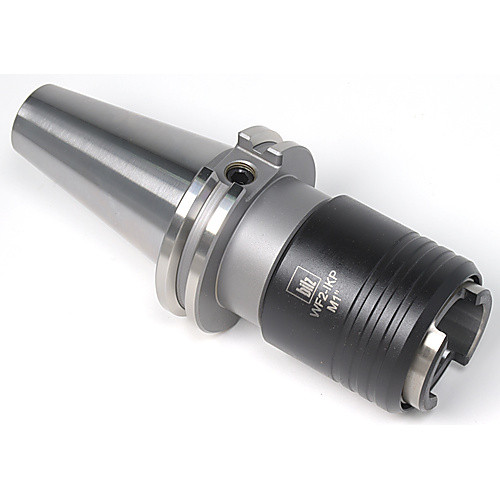

Rigid Tap Holder WF Series - CAT 40 No. 2
| Threaded Shank Size | CAT40 | Shank Type | CAT40 |
| Tap Range | 1/4″ - 7/8″ | Nose Diameter | 1.970″ |
| Adapter Size | #2 | Gage Length | 3.500″ |
| Type | V-Flange Quick Change Rigid Tap Holder | Tap Range (Fractional) | 1/4″ - 7/8″ |
| Series | WF | Tap Range (Metric) | M8 - M20 |
Product Features
| Remarks | •The Bilz Tapping System is designed for rapid ans easy tap adapter change, which are automatically locked into position om the insertion into the tapping chuck •Modular quick change design provides the ultimate in machining flexibility •Allows a single tap chuck to accept a range of tap shank diameters inch or metric, without a complete change in machine or tool holding setup. •Industry standard for quick change tapping •Widest range of sizes available •Tension Compression or Rigid in many configurations •Hign pressure coolant through available •Made in Germany | Country of Origin | Germany |
Shipping Info
Package Weight
3.5
